B62017/64
B62017/64

B62017/64

UGC DOR8157341
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.50 CAD - $38.50 CAD
$38.50 CAD
$38.50 CAD - $38.50 CAD
$38.50 CAD

Vendu en lots de : 1

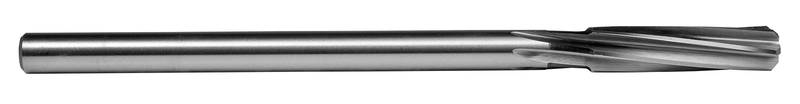

Alésoir machine avec goujures hélicoïdales lentes à droite et queue cylindrique, diamètre 0,2656" (17/64") avec une longueur totale de 6" et une longueur de goujure de 1.1/2", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage de l'acier à usinage facile et de l'acier au carbone ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B62017/64
GradeLumineux
Product Number8157341
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.2656"
Cutting Diameter — mm (DC)6.75 mm
Cutting Diameter — Fractional17/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.5"
Flute Length — mm (LCF)38.1 mm
Connection Dia. — in (DCON)0.2485"
Connection Dia. — mm (DCON)6.31 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157341
EAN3603607003428
File Type Download
B62017/64 — Line Drawing PDF Download
