B6209/32
B6209/32

B6209/32

UGC DOR8157342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.50 CAD - $38.50 CAD
$38.50 CAD
$38.50 CAD - $38.50 CAD
$38.50 CAD

Vendu en lots de : 1

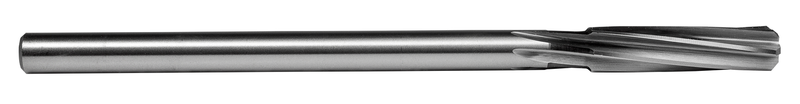

Alésoir machine avec goujures hélicoïdales lentes à droite et queue cylindrique, diamètre 0,2812" (9/32") avec une longueur totale de 6" et une longueur de goujure de 1,1/2", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'aléage de trous précis, en HSS avec finition brillante pour l'usinage d'aciers au carbone doux et ordinaires, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6209/32
GradeLumineux
Product Number8157342
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.2812"
Cutting Diameter — mm (DC)7.14 mm
Cutting Diameter — Fractional9/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.5"
Flute Length — mm (LCF)38.1 mm
Connection Dia. — in (DCON)0.2485"
Connection Dia. — mm (DCON)6.31 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157342
EAN3603607003435
File Type Download
B6209/32 — Line Drawing PDF Download
