B62011/32
B62011/32

B62011/32

UGC DOR8157344
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.16 CAD - $43.16 CAD
$43.16 CAD
$43.16 CAD - $43.16 CAD
$43.16 CAD

Vendu en lots de : 1

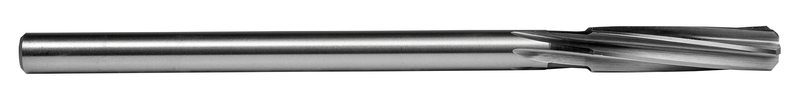

Alésoir machine à spirale lente à droite et queue cylindrique, diamètre 0,3438" (11/32") avec une longueur totale de 6" et une longueur de coupe de 1,1/2", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage d'acier à usinage facile et d'acier au carbone ordinaire, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B62011/32
GradeLumineux
Product Number8157344
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.5"
Flute Length — mm (LCF)38.1 mm
Connection Dia. — in (DCON)0.2792"
Connection Dia. — mm (DCON)7.09 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157344
EAN3603607003459
File Type Download
B62011/32 — Line Drawing PDF Download
