B62031/64
B62031/64

B62031/64

UGC DOR8157349
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.40 CAD - $51.40 CAD
$51.40 CAD
$51.40 CAD - $51.40 CAD
$51.40 CAD

Vendu en lots de : 1

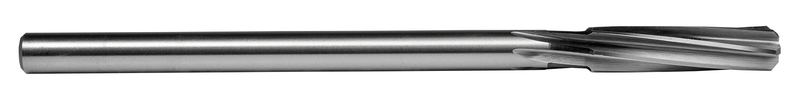

Alésoir machine à spirale lente à droite et à queue cylindrique, diamètre 0,4844" (31/64") avec une longueur totale de 8" et une longueur de coupe de 2", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alé-sage de trous précis, en acier rapide avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone, cuivres ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B62031/64
GradeLumineux
Product Number8157349
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.4844"
Cutting Diameter — mm (DC)12.3 mm
Cutting Diameter — Fractional31/64
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Connection Dia. — in (DCON)0.4355"
Connection Dia. — mm (DCON)11.06 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157349
EAN3603607003503
File Type Download
B62031/64 — Line Drawing PDF Download
