B6201/2
B6201/2

B6201/2

UGC DOR8157350
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.03 CAD - $49.03 CAD
$49.03 CAD
$49.03 CAD - $49.03 CAD
$49.03 CAD

Vendu en lots de : 1

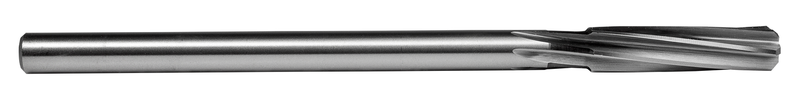

Alésoir machine avec goujures hélicoïdales lentes à droite et queue cylindrique, diamètre 0.5000" (1/2"), longueur totale 8" et longueur de coupe 2", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous de précision, HSS avec finition brillante pour l'usinage des aciers au carbone non alliés et à coupe rapide, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6201/2
GradeLumineux
Product Number8157350
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Connection Dia. — in (DCON)0.4355"
Connection Dia. — mm (DCON)11.06 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157350
EAN3603607003510
File Type Download
B6201/2 — Line Drawing PDF Download
