B62011/16
B62011/16

B62011/16

UGC DOR8157354
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.59 CAD - $79.59 CAD
$79.59 CAD
$79.59 CAD - $79.59 CAD
$79.59 CAD

Vendu en lots de : 1

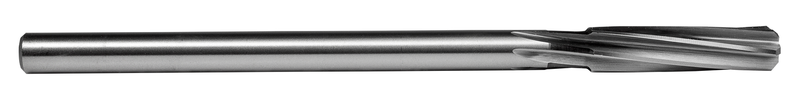

Alésoir machine à spirale lente à droite et à queue cylindrique, diamètre 0,6875" (11/16") avec une longueur totale de 9" et une longueur de coupe de 2,1/4", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage d'acier au carbone à usinabilité améliorée et ordinaire, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B62011/16
GradeLumineux
Product Number8157354
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.6875"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)9.0"
Overall Length — mm (OAL)228.6 mm
Flute Length — in (LCF)2.25"
Flute Length — mm (LCF)57.15 mm
Connection Dia. — in (DCON)0.562"
Connection Dia. — mm (DCON)14.27 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157354
EAN3603607003558
File Type Download
B62011/16 — Line Drawing PDF Download
