B6203/4
B6203/4

B6203/4

UGC DOR8157355
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.47 CAD - $88.47 CAD
$88.47 CAD
$88.47 CAD - $88.47 CAD
$88.47 CAD

Vendu en lots de : 1

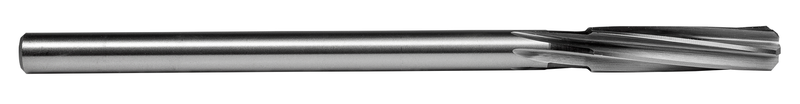

Alésoir machine avec goujures hélicoïdales lentes à droite et queue cylindrique, diamètre 0,7500" (3/4") avec une longueur totale de 9.1/2" et une longueur de coupe de 2.1/2", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage de l'acier au carbone à usinage facile et ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6203/4
GradeLumineux
Product Number8157355
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)9.5"
Overall Length — mm (OAL)241.3 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Connection Dia. — in (DCON)0.6245"
Connection Dia. — mm (DCON)15.86 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157355
EAN3603607003565
File Type Download
B6203/4 — Line Drawing PDF Download
