B6207/8
B6207/8

B6207/8

UGC DOR8157356
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.19 CAD - $114.19 CAD
$114.19 CAD
$114.19 CAD - $114.19 CAD
$114.19 CAD

Vendu en lots de : 1

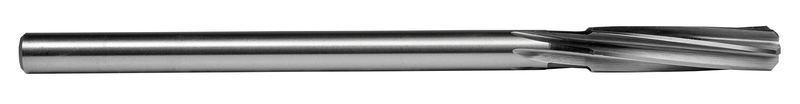

Alésoir à queue cylindrique, spirale lente à droite, de diamètre 0,8750" (7/8") avec une longueur totale de 10" et une longueur de coupe de 2.5/8", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous de précision, en HSS avec finition brillante pour l'usinage d'acier à coupe facile et d'acier au carbone non allié, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6207/8
GradeLumineux
Product Number8157356
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — in (OAL)10.0"
Overall Length — mm (OAL)254.0 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Connection Dia. — in (DCON)0.7495"
Connection Dia. — mm (DCON)19.04 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157356
EAN3603607003572
File Type Download
B6207/8 — Line Drawing PDF Download
