B6201
B6201

B6201

UGC DOR8157357
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$142.84 CAD - $142.84 CAD
$142.84 CAD
$142.84 CAD - $142.84 CAD
$142.84 CAD

Vendu en lots de : 1

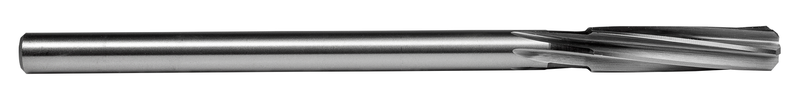

Alésoir machine à spirale lente à droite et queue cylindrique, diamètre 1.0000" (1") avec une longueur totale de 10.1/2" et une longueur de coupe de 2.3/4", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage des aciers de décolletage et au carbone ordinaires, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6201
GradeLumineux
Product Number8157357
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)10.5"
Overall Length — mm (OAL)266.7 mm
Flute Length — in (LCF)2.75"
Flute Length — mm (LCF)69.85 mm
Connection Dia. — in (DCON)0.8745"
Connection Dia. — mm (DCON)22.21 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157357
EAN3603607003589
File Type Download
B6201 — Line Drawing PDF Download
