B6407/16
B6407/16

B6407/16

UGC DOR8157358
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.30 CAD - $103.30 CAD
$103.30 CAD
$103.30 CAD - $103.30 CAD
$103.30 CAD

Vendu en lots de : 1

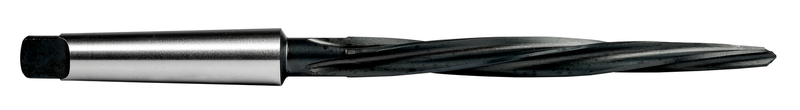

Alésoir d'ajustage à spirale lente à gauche et queue cône Morse, diamètre nominal 7/16" avec une longueur totale de 8,1/4" et une longueur de coupe de 4,3/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone et alliés, fonte grise et malléable, aluminium et cuivre ou alliages de cuivre corroyés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6407/16
GradeTrempé à la vapeur
Product Number8157358
Product FamilyB640
Dimensions
Overall Length — in (OAL)8.25"
Overall Length — mm (OAL)209.55 mm
Flute Length — in (LCF)4.375"
Flute Length — mm (LCF)111.13 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157358
EAN3603607003596
File Type Download

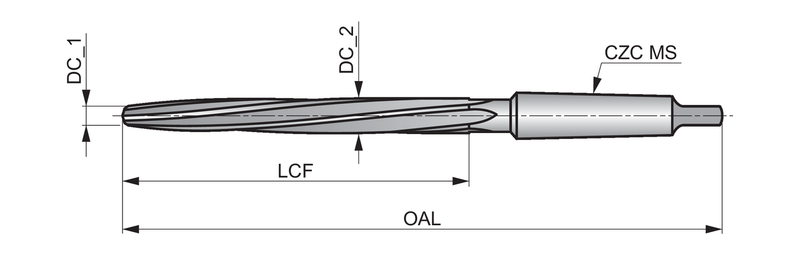

B6407/16 — Line Drawing PDF Download
