B6401/2
B6401/2

B6401/2

UGC DOR8157359
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.77 CAD - $105.77 CAD
$105.77 CAD
$105.77 CAD - $105.77 CAD
$105.77 CAD

Vendu en lots de : 1

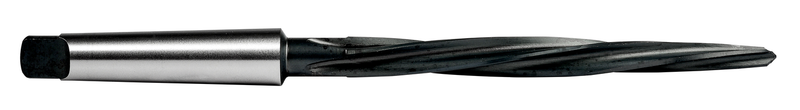

Alésoir conique à queue Morse et spirale lente à gauche, diamètre nominal 1/2", longueur totale 9" et longueur de coupe 5.1/8", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone et alliés, de la fonte grise et malléable, de l'aluminium corroyé et moulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6401/2
GradeSteam Tempered
Product Number8157359
Product FamilyB640
Dimensions
Overall Length — in (OAL)9.0"
Overall Length — mm (OAL)228.6 mm
Flute Length — in (LCF)5.125"
Flute Length — mm (LCF)130.18 mm
Number of Flutes (NOF)5
Tool Information
ShankMorse Taper Shank
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157359
EAN3603607003602
File Type Download

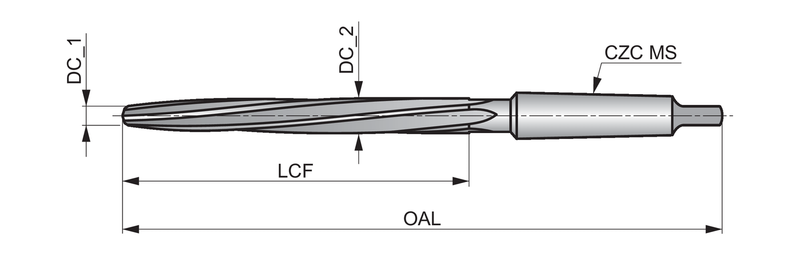

B6401/2 — Line Drawing PDF Download
