B6409/16
B6409/16

B6409/16

UGC DOR8157360
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.19 CAD - $114.19 CAD
$114.19 CAD
$114.19 CAD - $114.19 CAD
$114.19 CAD

Vendu en lots de : 1

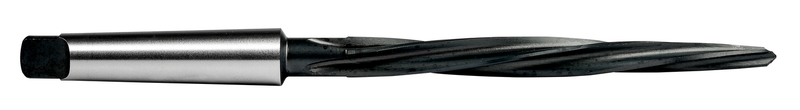

Alésoir d'ajustage à spirale lente à gauche et queue conique Morse, diamètre nominal de 9/16" avec une longueur totale de 9" et une longueur de coupe de 5.1/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage d'acier à coupe rapide, d'acier au carbone simple et allié, de fonte grise et malléable, d'aluminium forgé et moulé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6409/16
GradeSteam Tempered
Product Number8157360
Product FamilyB640
Dimensions
Overall Length — in (OAL)9.0"
Overall Length — mm (OAL)228.6 mm
Flute Length — in (LCF)5.125"
Flute Length — mm (LCF)130.18 mm
Number of Flutes (NOF)5
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number8157360
EAN3603607003619
File Type Download

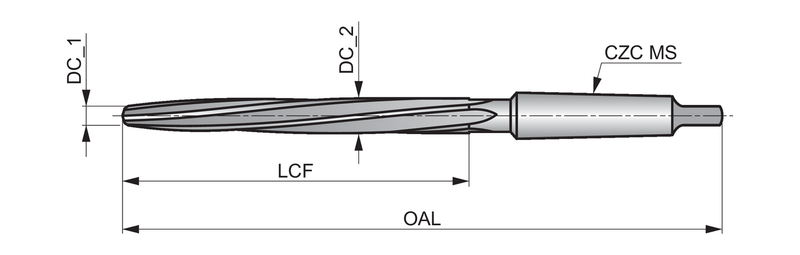

B6409/16 — Line Drawing PDF Download
