B64011/16
B64011/16

B64011/16

UGC DOR8157362
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.20 CAD - $155.20 CAD
$155.20 CAD
$155.20 CAD - $155.20 CAD
$155.20 CAD

Vendu en lots de : 1

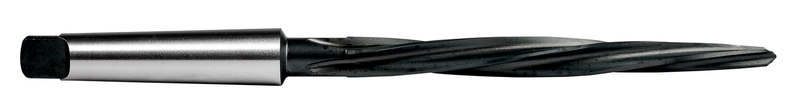

Alésoir de pont à spirale lente à gauche et queue conique Morse, diamètre nominal 11/16" avec une longueur totale de 11,3/4" et une longueur de coupe de 7,1/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone et alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B64011/16
GradeSteam Tempered
Product Number8157362
Product FamilyB640
Dimensions
Overall Length — in (OAL)11.75"
Overall Length — mm (OAL)298.45 mm
Flute Length — in (LCF)7.125"
Flute Length — mm (LCF)180.98 mm
Number of Flutes (NOF)5
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number8157362
EAN3603607003633
File Type Download

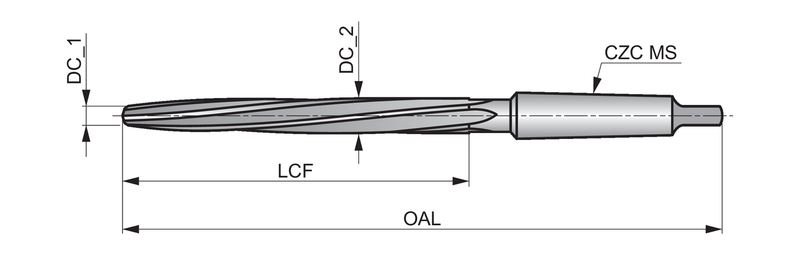

B64011/16 — Line Drawing PDF Download
