B6403/4
B6403/4

B6403/4

UGC DOR8157363
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$162.13 CAD - $162.13 CAD
$162.13 CAD
$162.13 CAD - $162.13 CAD
$162.13 CAD

Vendu en lots de : 1

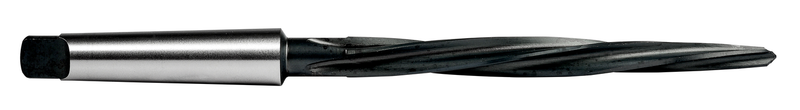

Alésoir de pont à spirale lente à gauche et queue conique Morse, diamètre nominal 3/4" avec une longueur totale de 12" et une longueur de cannelure de 7,3/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage d'acier à coupe facile, d'acier au carbone et allié, de fonte grise et malléable, d'aluminium forgé et moulé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6403/4
GradeSteam Tempered
Product Number8157363
Product FamilyB640

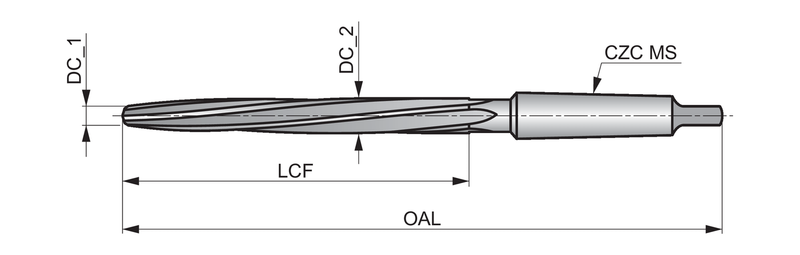

Dimensions
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)7.375"
Flute Length — mm (LCF)187.33 mm
Number of Flutes (NOF)5
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number8157363
EAN3603607003640
File Type Download
B6403/4 — Line Drawing PDF Download
