B6407/8
B6407/8

B6407/8

UGC DOR8157365
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$194.74 CAD - $194.74 CAD
$194.74 CAD
$194.74 CAD - $194.74 CAD
$194.74 CAD

Vendu en lots de : 1

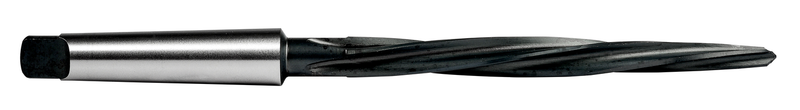

Alésoir de pont à spirale lente main gauche et queue cône Morse, diamètre nominal 7/8" avec une longueur totale de 12" et une longueur de coupe de 7.3/8", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage des aciers à usinabilité améliorée, des aciers au carbone et alliés, de la fonte grise et malléable, de l'aluminium forgé et moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6407/8
GradeSteam Tempered
Product Number8157365
Product FamilyB640
Dimensions
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)7.375"
Flute Length — mm (LCF)187.33 mm
Number of Flutes (NOF)5
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number8157365
EAN3603607003664
File Type Download

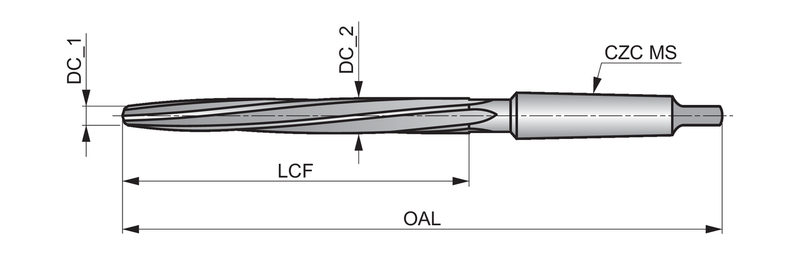

B6407/8 — Line Drawing PDF Download
