B6901/4X60
B6901/4X60

B6901/4X60

UGC DOR8157413
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.81 CAD - $20.81 CAD
$20.81 CAD
$20.81 CAD - $20.81 CAD
$20.81 CAD

Vendu en lots de : 1

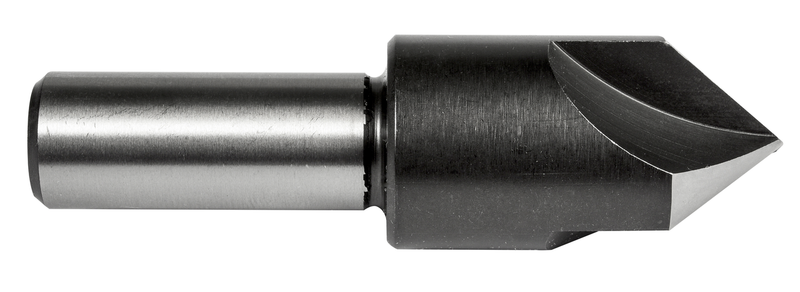

Alésoir de centrage à 3 arêtes, angle de chanfrein de 60°, diamètre maximum de 1/4" avec une longueur totale de 1,1/2" et une longueur de tête de 3/4" et une queue droite de 3/16", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour le réusinage de finition des trous chanfreinés, en HSS avec finition brillante standard pour l'usinage des aciers au carbone doux et courants, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6901/4X60
GradeLumineux
Product Number8157413
Product FamilyB690
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157413
EAN3603607004142
File Type Download

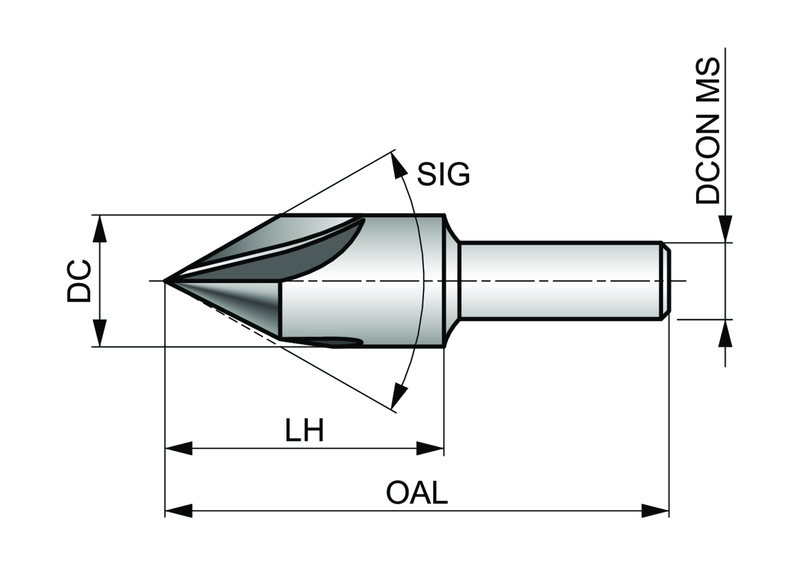

B6901/4X60 — Line Drawing PDF Download
