B6903/8X60
B6903/8X60

B6903/8X60

UGC DOR8157417
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.57 CAD - $24.57 CAD
$24.57 CAD
$24.57 CAD - $24.57 CAD
$24.57 CAD

Vendu en lots de : 1

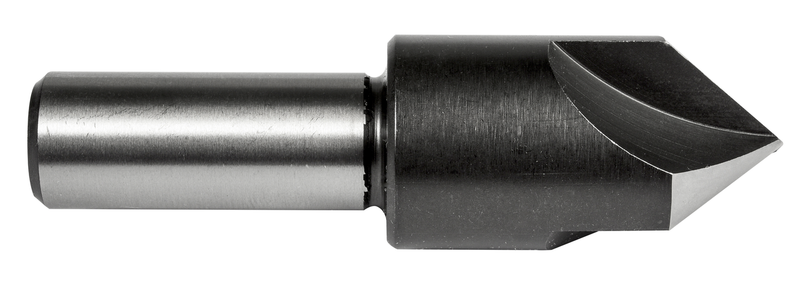

Alésoir conique à 3 goujures, angle de chanfrein de 60°, diamètre maximum de 3/8" avec une longueur totale de 1,3/4" et une longueur de tête de 7/8" et queue droite de 1/4", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de finition des trous chanfreinés, en acier rapide avec finition brillante standard pour l'usinage des aciers à usinabilité améliorée et des aciers au carbone doux, des aciers corroyés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6903/8X60
GradeLumineux
Product Number8157417
Product FamilyB690

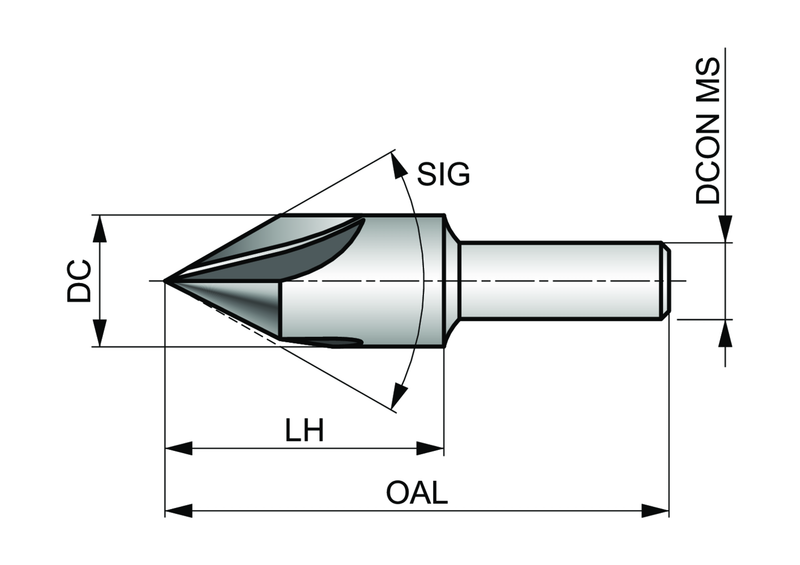

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157417
EAN3603607004180
File Type Download
B6903/8X60 — Line Drawing PDF Download
