B6903/8X90
B6903/8X90

B6903/8X90

UGC DOR8157419
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.57 CAD - $24.57 CAD
$24.57 CAD
$24.57 CAD - $24.57 CAD
$24.57 CAD

Vendu en lots de : 1

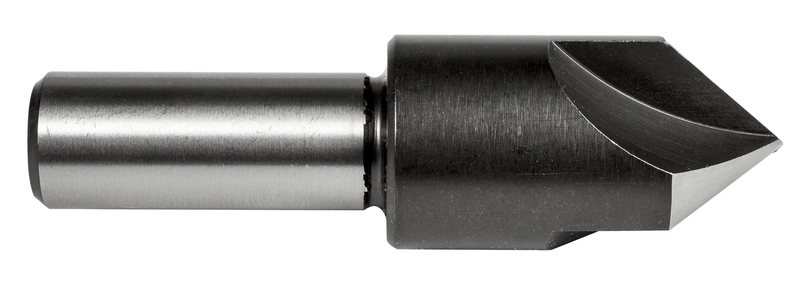

Alésoir conique à 3 goujures, angle de chanfrein 90°, diamètre maximal 3/8" avec une longueur totale de 1.3/4" et une longueur de tête de 7/8" et une queue droite de 1/4", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour aléser des sièges coniques pour vis métriques ISO à tête plate, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone, du cuivre forgé ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6903/8X90
GradeLumineux
Product Number8157419
Product FamilyB690

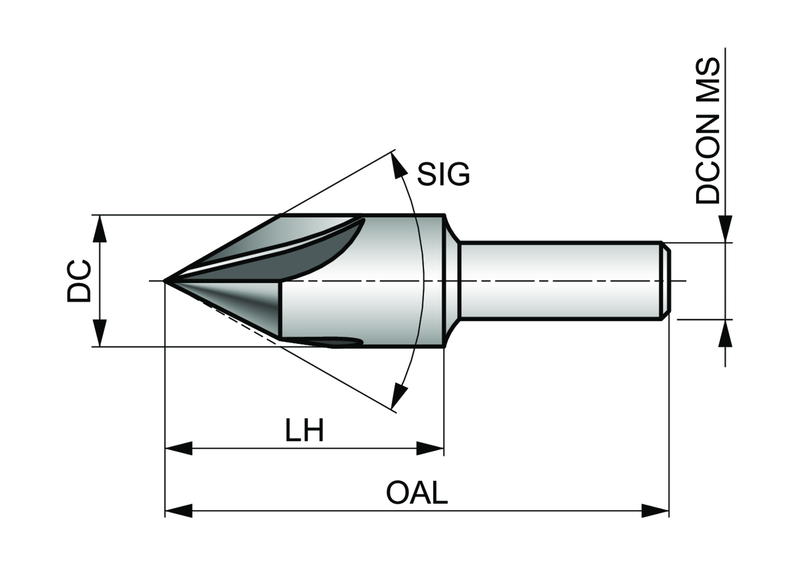

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157419
EAN3603607004203
File Type Download
B6903/8X90 — Line Drawing PDF Download
