B6901/2X60
B6901/2X60

B6901/2X60

UGC DOR8157421
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.73 CAD - $31.73 CAD
$31.73 CAD
$31.73 CAD - $31.73 CAD
$31.73 CAD

Vendu en lots de : 1

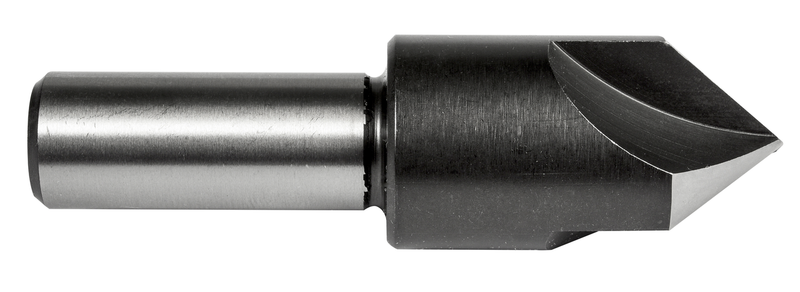

Alésoir de centrage à 3 tranchants, angle de chanfrein de 60°, diamètre maximal de 1/2" avec une longueur totale de 2" et une longueur de tête de 1" et queue droite de 3/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésoir de finition des trous chanfreinés, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone, du cuivre forgé ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6901/2X60
GradeLumineux
Product Number8157421
Product FamilyB690

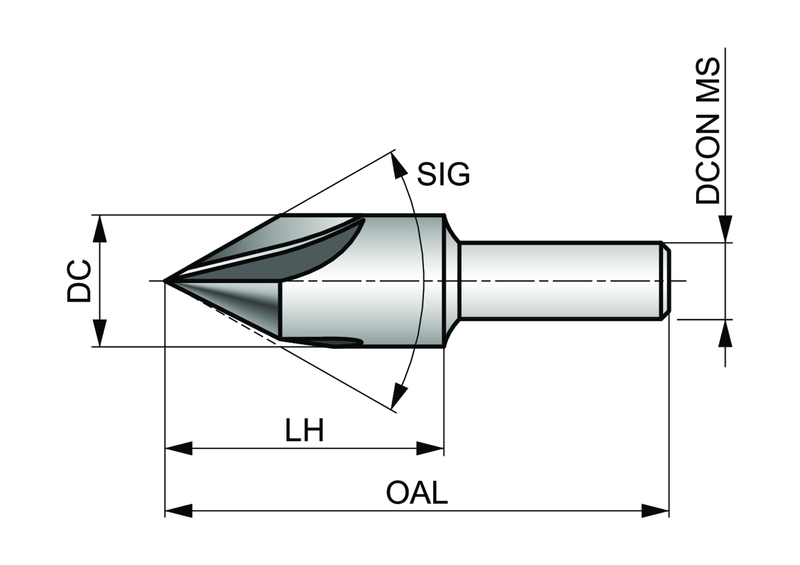

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157421
EAN3603607004227
File Type Download
B6901/2X60 — Line Drawing PDF Download
