B6901/2X82
B6901/2X82

B6901/2X82

UGC DOR8157422
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.73 CAD - $31.73 CAD
$31.73 CAD
$31.73 CAD - $31.73 CAD
$31.73 CAD

Vendu en lots de : 1

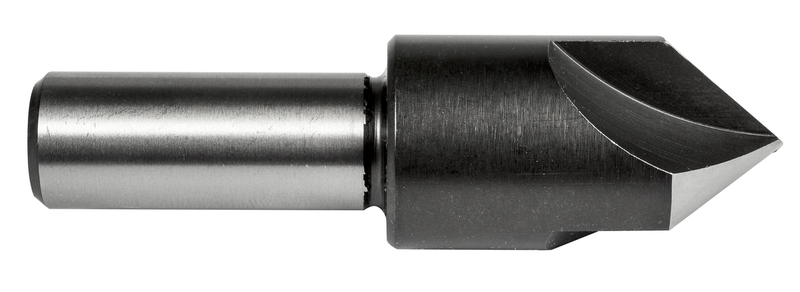

Alésoir conique à 3 goujures, angle de chanfrein de 82°, diamètre maximal de 1/2" avec une longueur totale de 2" et une longueur de tête de 1" et une queue droite de 3/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour le réalésage de sièges coniques pour vis à tête plate standard américaines, HSS avec finition brillante standard pour l'usinage des aciers au carbone doux et ordinaires, des aciers forgés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6901/2X82
GradeLumineux
Product Number8157422
Product FamilyB690
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)82°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157422
EAN3603607004234
File Type Download

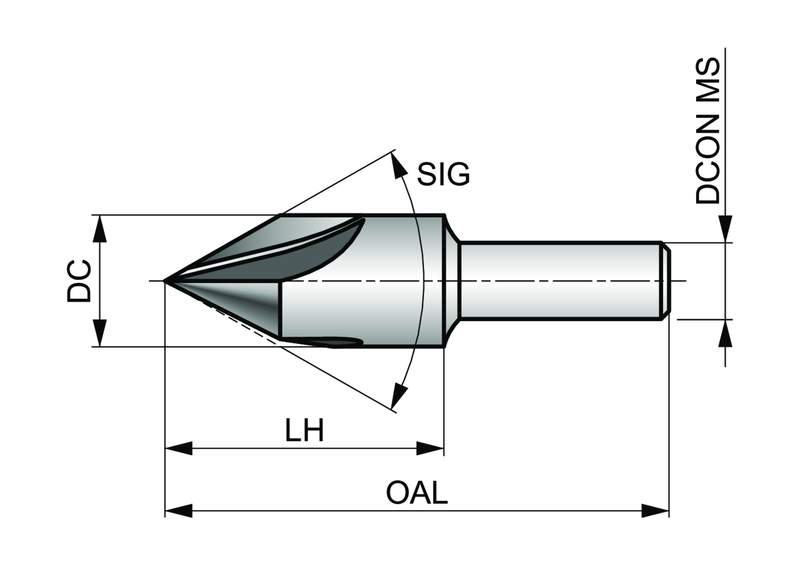

B6901/2X82 — Line Drawing PDF Download
