B6901/2X90
B6901/2X90

B6901/2X90

UGC DOR8157423
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.73 CAD - $31.73 CAD
$31.73 CAD
$31.73 CAD - $31.73 CAD
$31.73 CAD

Vendu en lots de : 1

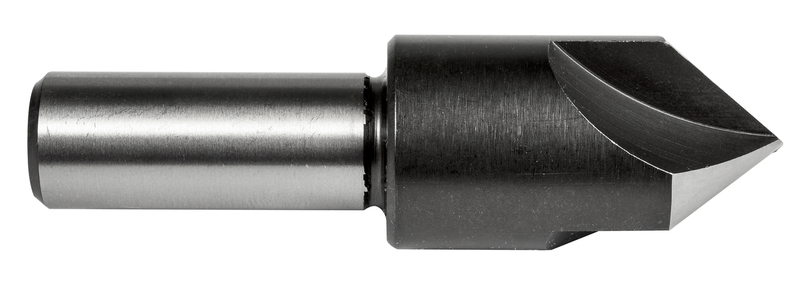

Alésoir de centrage à 3 dents, angle de fraisage conique de 90°, diamètre maximal de 1/2" avec une longueur totale de 2" et une longueur de tête de 1" et une queue droite de 3/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de finition d'un logement conique pour vis à tête plate métriques ISO, HSS avec finition brillante standard pour l'usinage d'acier à usinage facile et d'acier au carbone ordinaire, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6901/2X90
GradeLumineux
Product Number8157423
Product FamilyB690
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157423
EAN3603607004241
File Type Download

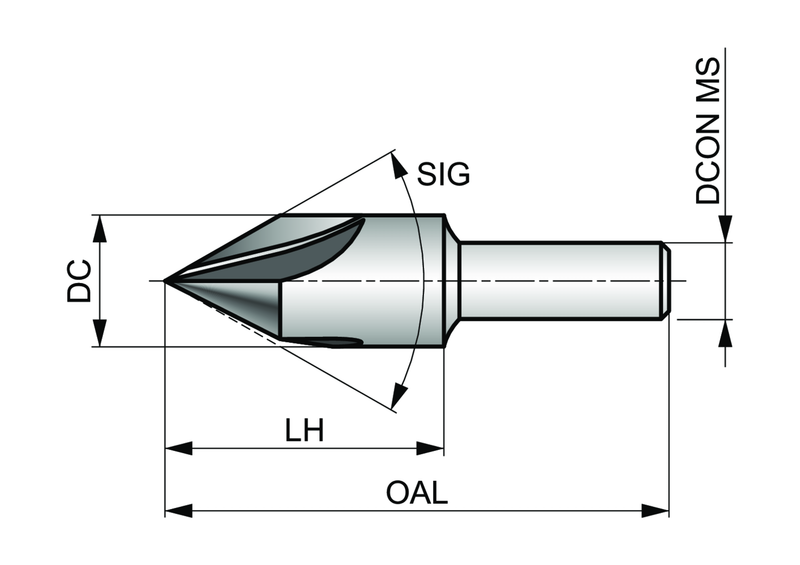

B6901/2X90 — Line Drawing PDF Download
