B6901/2X100
B6901/2X100

B6901/2X100

UGC DOR8157424
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.73 CAD - $31.73 CAD
$31.73 CAD
$31.73 CAD - $31.73 CAD
$31.73 CAD

Vendu en lots de : 1

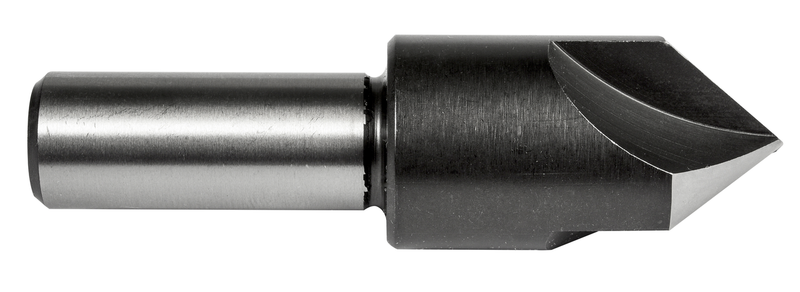

Alésoir de centrage à 3 dents, angle de fraisage conique de 100°, diamètre maximum de 1/2" avec une longueur totale de 2" et une longueur de tête de 1" et une queue droite de 3/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de finition d'un logement conique pour les vis à tête plate standard BS et les fixations aéronautiques, en HSS avec finition brillante standard pour l'usinage de l'acier au carbone à usinage facile et ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6901/2X100
GradeLumineux
Product Number8157424
Product FamilyB690

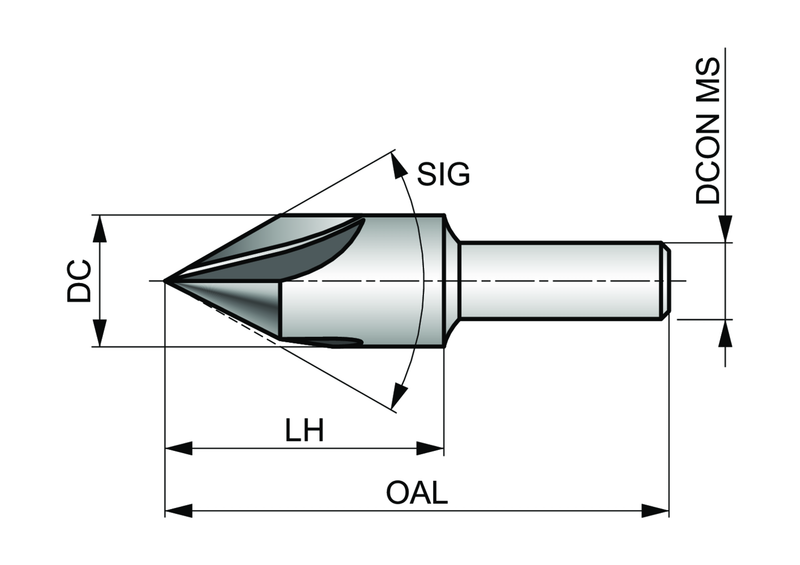

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)100°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157424
EAN3603607004258
File Type Download
B6901/2X100 — Line Drawing PDF Download
