B6903/4X60
B6903/4X60

B6903/4X60

UGC DOR8157429
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.30 CAD - $60.30 CAD
$60.30 CAD
$60.30 CAD - $60.30 CAD
$60.30 CAD

Vendu en lots de : 1

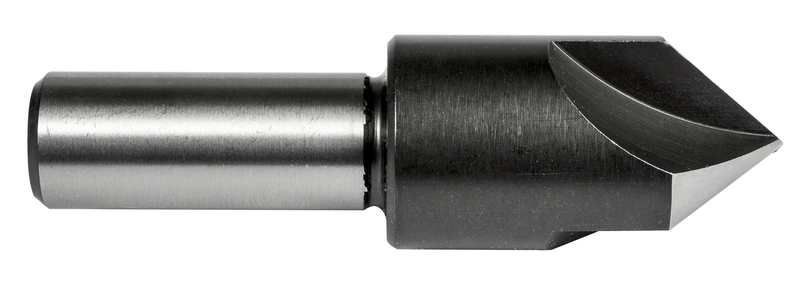

Alésoir conique à 3 goujures, angle de chanfrein de 60°, diamètre maximal de 3/4" avec une longueur totale de 2.5/8" et une longueur de tête de 1.1/4" et une queue droite de 1/2", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de finition des trous chanfreinés, en HSS avec finition brillante standard pour l'usinage de l'acier au carbone à usinabilité améliorée et ordinaire, du cuivre forgé et des alliages de cuivre.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6903/4X60
GradeLumineux
Product Number8157429
Product FamilyB690

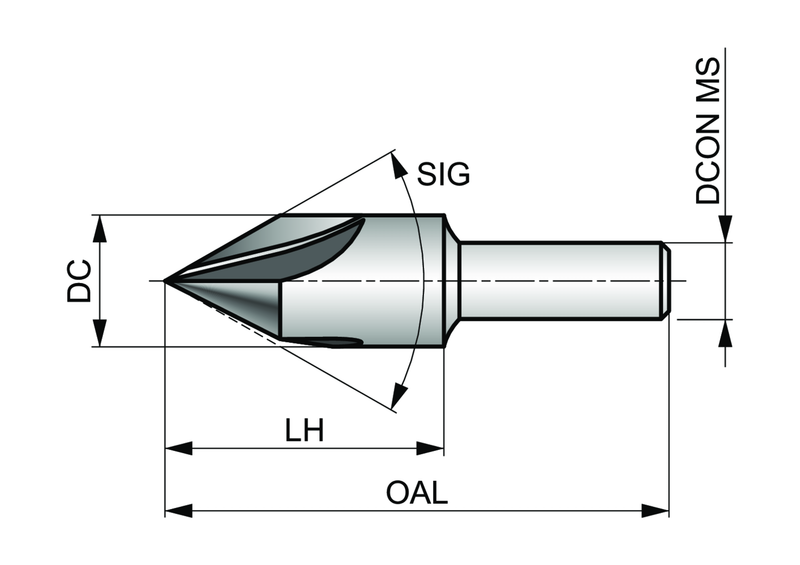

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)2.625"
Overall Length — mm (OAL)66.68 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157429
EAN3603607004302
File Type Download
B6903/4X60 — Line Drawing PDF Download
