B6903/4X82
B6903/4X82

B6903/4X82

UGC DOR8157430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.30 CAD - $60.30 CAD
$60.30 CAD
$60.30 CAD - $60.30 CAD
$60.30 CAD

Vendu en lots de : 1

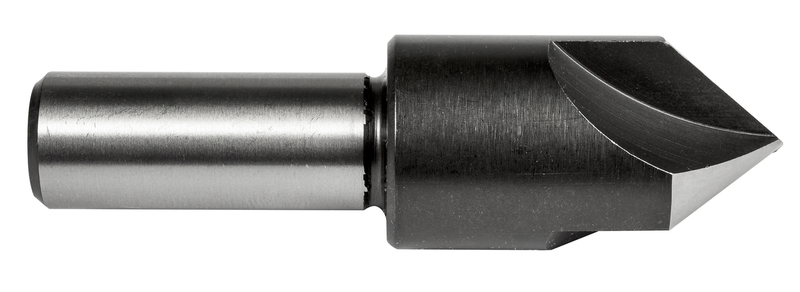

Alésoir de centrage à 3 dents, angle de fraisage de 82°, diamètre maximal de 3/4" avec une longueur totale de 2,5/8" et une longueur de tête de 1,1/4" et une queue droite de 1/2", fabriqué selon les normes ANSI B94.2-1983(R1988) pour finir un logement conique pour les vis à tête plate standard US, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et au carbone ordinaire, des aciers corroyés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6903/4X82
GradeLumineux
Product Number8157430
Product FamilyB690

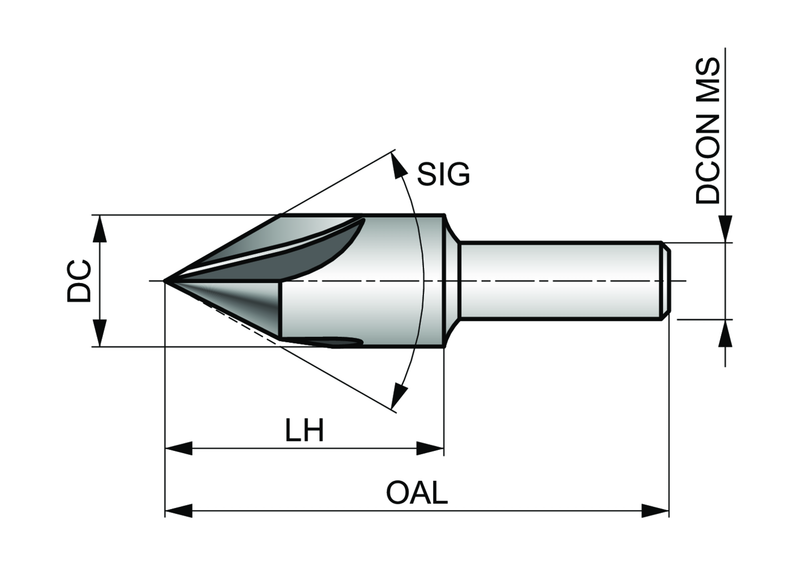

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)2.625"
Overall Length — mm (OAL)66.68 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)82°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157430
EAN3603607004319
File Type Download
B6903/4X82 — Line Drawing PDF Download
