B6901X82
B6901X82

B6901X82

UGC DOR8157434
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$112.20 CAD - $112.20 CAD
$112.20 CAD
$112.20 CAD - $112.20 CAD
$112.20 CAD

Vendu en lots de : 1

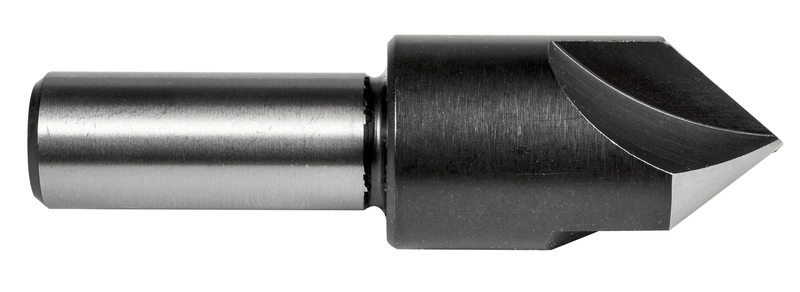

Alésoir de centrage à 3 dents, angle de fraisage de 82°, diamètre maximal de 1" avec une longueur totale de 3" et une longueur de tête de 1" et une queue droite de 1/2", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour le réalésage de sièges coniques pour vis à tête plate standard US, HSS avec finition brillante standard pour l'usinage des aciers au carbone doux et ordinaires, du cuivre ou de ses alliages.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6901X82
GradeLumineux
Product Number8157434
Product FamilyB690

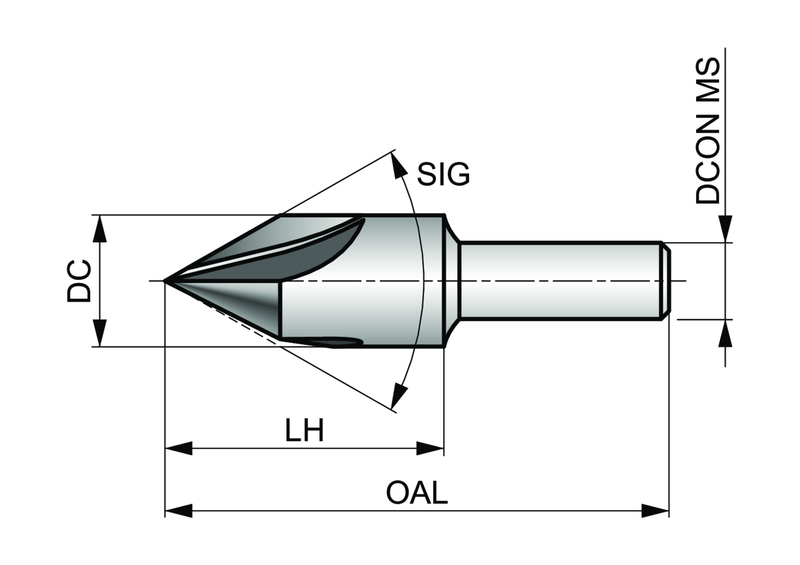

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)82°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157434
EAN3603607004357
File Type Download
B6901X82 — Line Drawing PDF Download
