GL4-S400M02-PM:G8330
GL4-S400M02-PM:G8330

GL4-S400M02-PM:G8330

UGC DOR8178697
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.76 CAD - $18.76 CAD
$18.76 CAD
$18.76 CAD - $18.76 CAD
$18.76 CAD

Vendu en lots de : 10

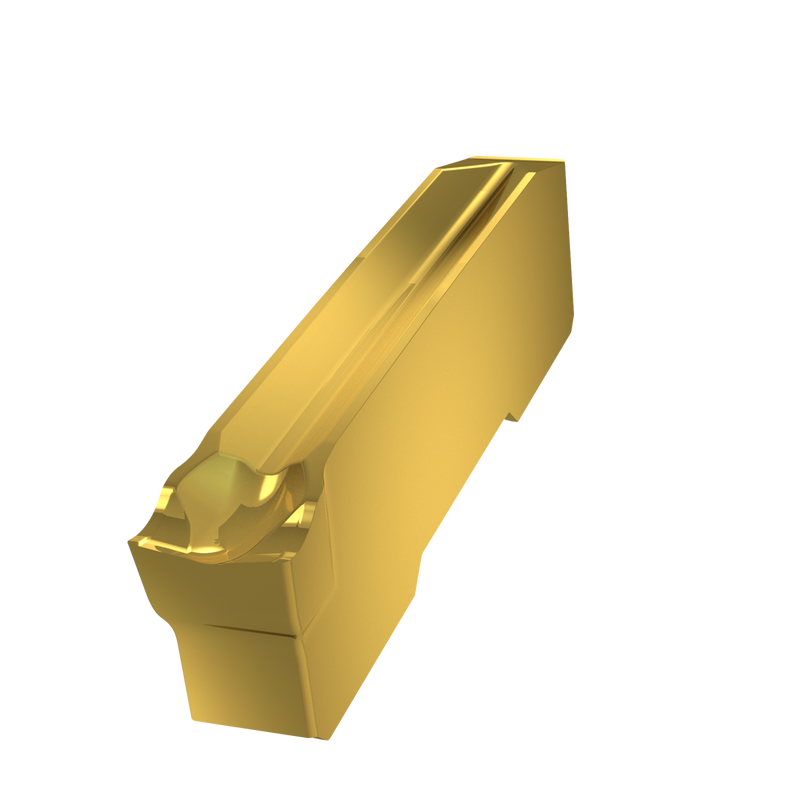

Gorge et tronçonnage à simple arête, plaquette de 24,3 mm de long, 4 mm de largeur de coupe et rayon de pointe de 0,2 mm. Nuance carbure WC-Co à grains fins avec revêtement PVD G8330 dans les plages de grades ISO P25-P40 et M20-M35 pour l'usinage de l'acier et de l'acier inoxydable. Géométrie PM à coupe très positive sur plaquette simple face, premier choix pour le tronçonnage profond et les coupes continues à légèrement interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-S400M02-PM:G8330
Chipbreaker (CBMD)MP
Product Number8178697
Product FamilyGL. S - PM
Insert Geometry
Insert DesignGL. S
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8178697
EAN3603603947115
File Type Download

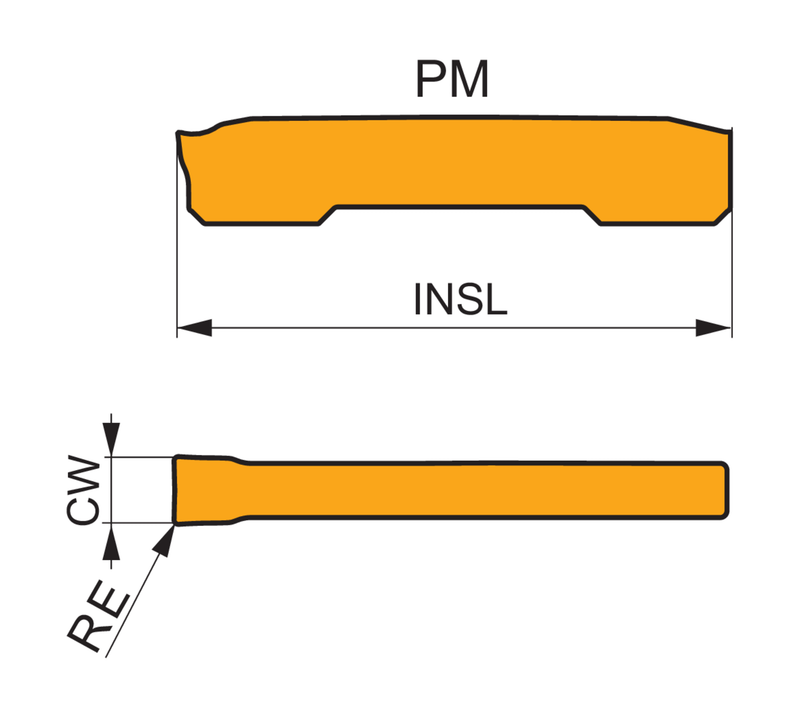

GL4-S400M02-PM:G8330 — Line Drawing PDF Download
