GL2-S29CBS
GL2-S29CBS
GL2-S29CBS

GL2-S29CBS

UGC DOR8178802
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$174.00 CAD - $174.00 CAD
$174.00 CAD
$174.00 CAD - $174.00 CAD
$174.00 CAD

Vendu en lots de : 1

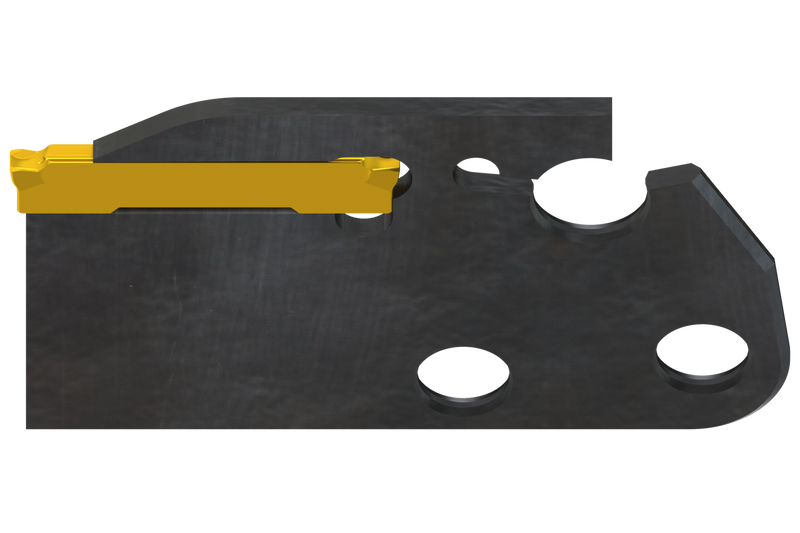

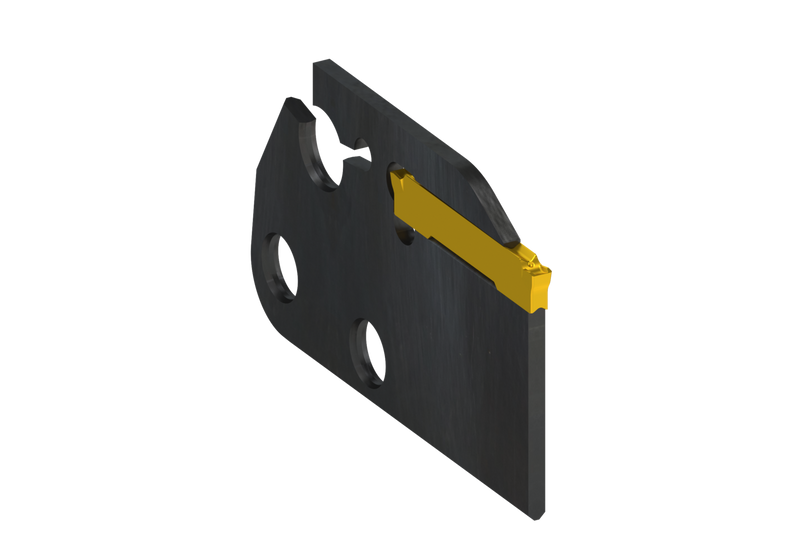

La GL2-S29CBS est une lame pour le porte-outil modulaire MS-EN, conçue pour les plaquettes GL. Adaptée aux applications de rainurage et de tronçonnage. Lames traitées pour une durée de vie prolongée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-S29CBS
Product Number8178802
Product FamilyGLS EN FAVEUR
Insert Geometry
Depth of Cut Max — in (APMX)0.945"

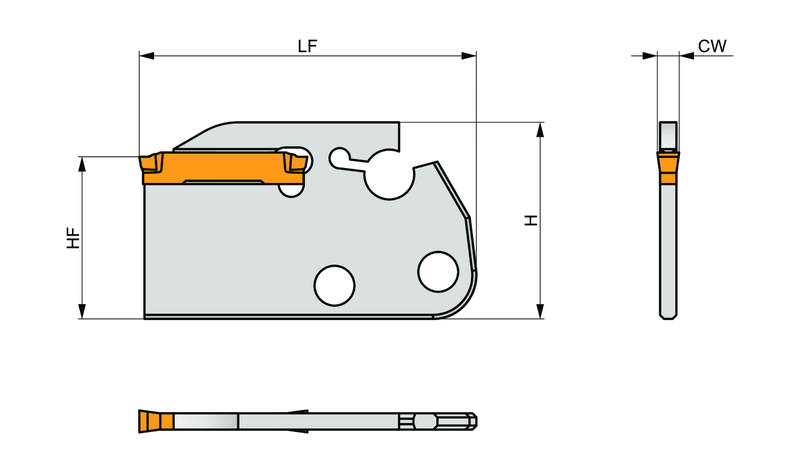

Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)1.142 mm
Tool Information
Reference Numbers
EDP Number8178802
EAN3603603947139
File Type Download
GL2-S29CBS — 3D Model STP Download
GL2-S29CBS — Line Drawing PDF Download
