GL4-S20DFR-.94
GL4-S20DFR-.94
GL4-S20DFR-.94

GL4-S20DFR-.94

UGC DOR8178862
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$308.00 CAD - $308.00 CAD
$308.00 CAD
$308.00 CAD - $308.00 CAD
$308.00 CAD

Vendu en lots de : 1

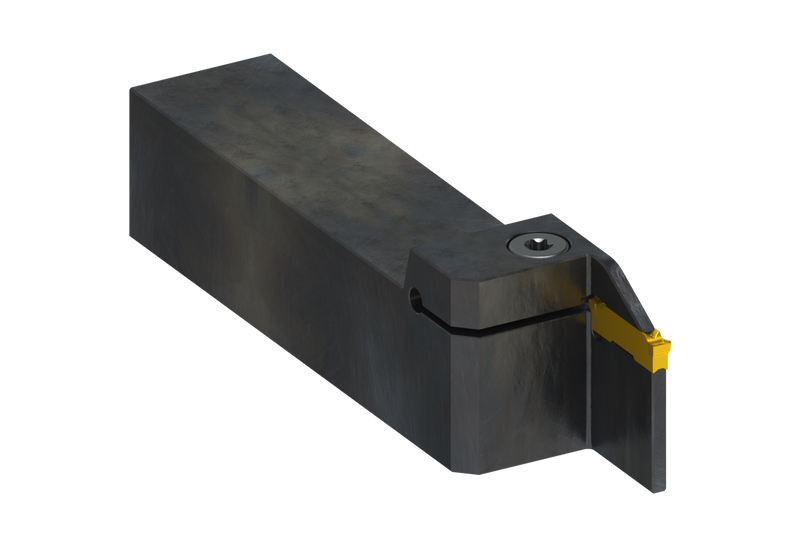

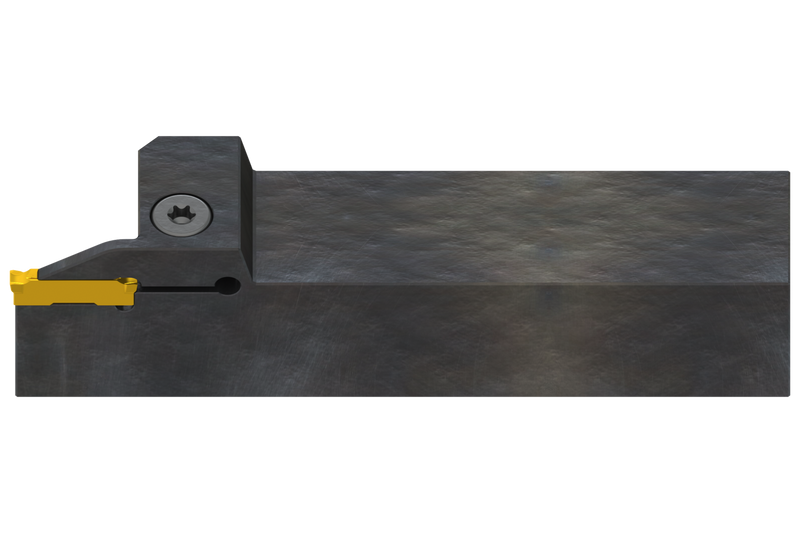

Le GL4-S20DFR-.94 est un porte-outil externe droit/gauche pour plaquettes GL. Il convient parfaitement aux applications de tournage longitudinal et de profilage, et peut également être utilisé pour le rainurage et le tronçonnage. Corps traité pour une durée de vie accrue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI)GL4-S20DFR-.94
Product Name (ISO)GL4-S20DFR-0.94
Product Number8178862
Product FamilyIGLSF(AR) EXT-G
Insert Geometry
Depth of Cut Max — in (APMX)0.94"
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.25 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8178862
EAN3603603947290
File Type Download
GL4-S20DFR-.94 — 3D Model STP Download

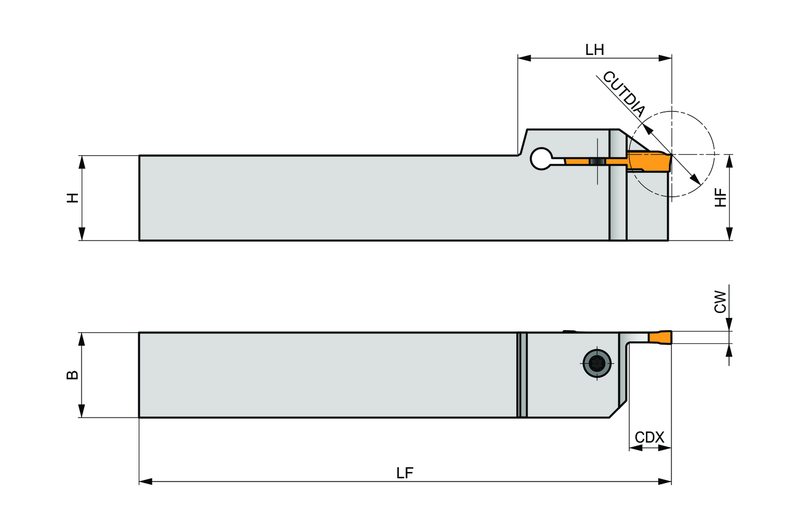

GL4-S20DFR-.94 — Line Drawing PDF Download
