GL2-A2525MFR-20-80
GL2-A2525MFR-20-80
GL2-A2525MFR-20-80

GL2-A2525MFR-20-80

UGC DOR8180516
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

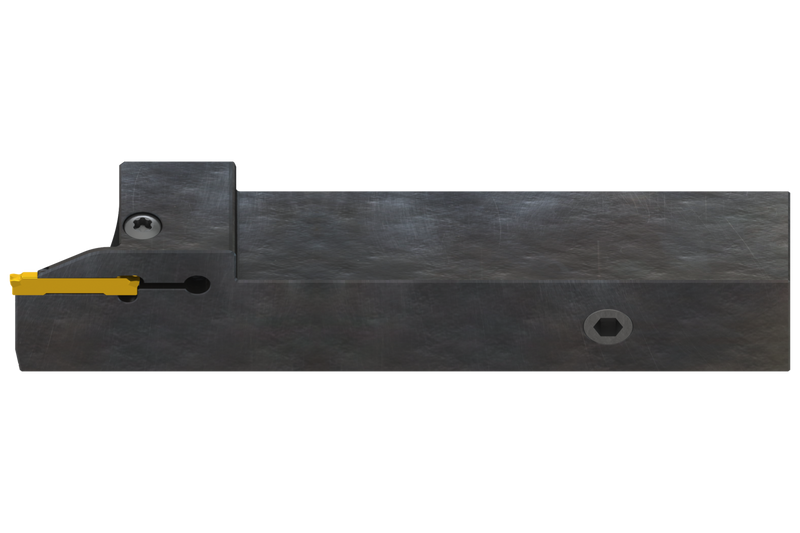

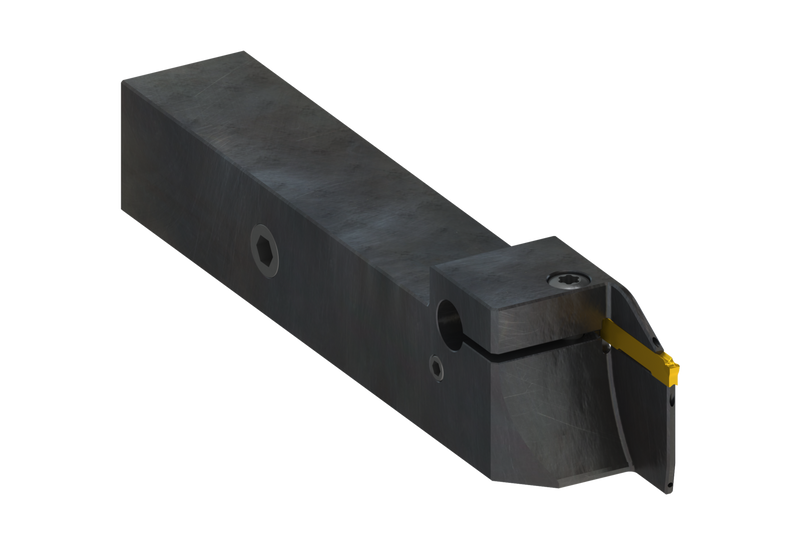

GL2-A2525MFR-20-80 est un outil externe droit avec arrosage interne pour plaquettes GL. Convient aux applications de gorge radiale, tronçonnage, tournage et profilage. Conception du corps renforcée pour une durée de vie accrue de l'outil et de faibles vibrations. Corps traité pour une plus longue durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-A2525MFR-20-80
Product Number8180516
Product FamilyGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.787"
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180516
EAN3603603947412
File Type Download
GL2-A2525MFR-20-80 — 3D Model STP Download

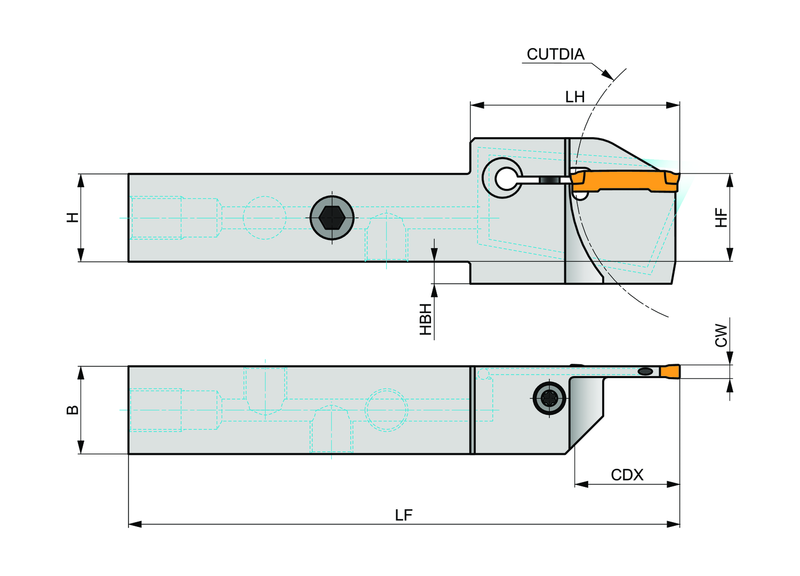

GL2-A2525MFR-20-80 — Line Drawing PDF Download
