GL3-A1616KFR-16-45
GL3-A1616KFR-16-45
GL3-A1616KFR-16-45

GL3-A1616KFR-16-45

UGC DOR8180520
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$453.00 CAD - $453.00 CAD
$453.00 CAD
$453.00 CAD - $453.00 CAD
$453.00 CAD

Vendu en lots de : 1

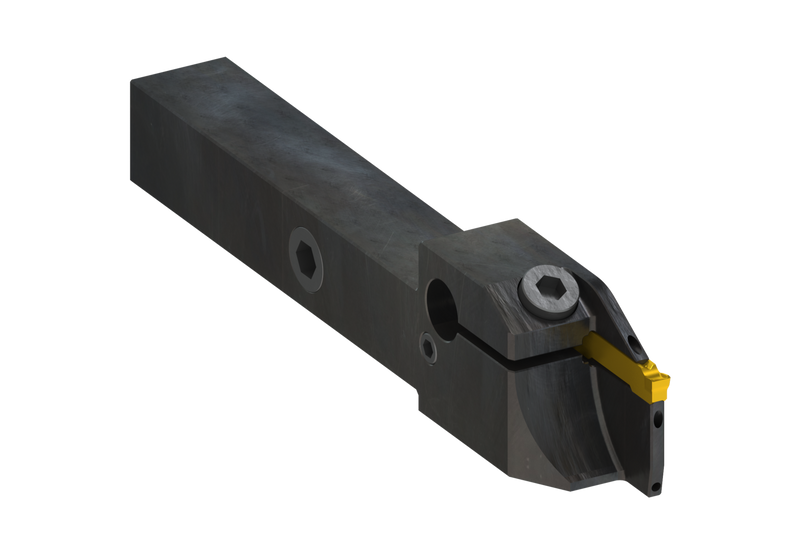

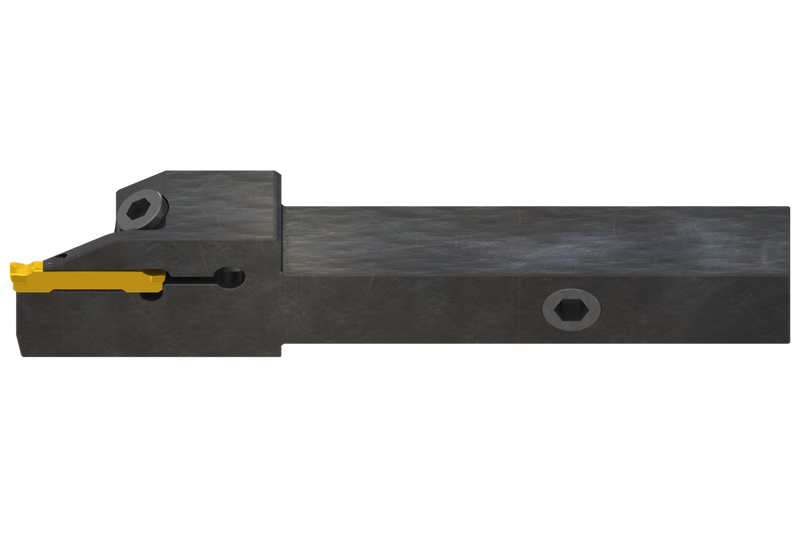

GL3-A1616KFR-16-45 est un outil externe droit à arrosage interne pour les plaquettes GL, conçu pour les machines à poupée mobile et un accès facile au serrage des plaquettes. Convient aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-A1616KFR-16-45
Product Number8180520
Product FamilyGLAF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.63"
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180520
EAN3603603947450
File Type Download
GL3-A1616KFR-16-45 — 3D Model STP Download

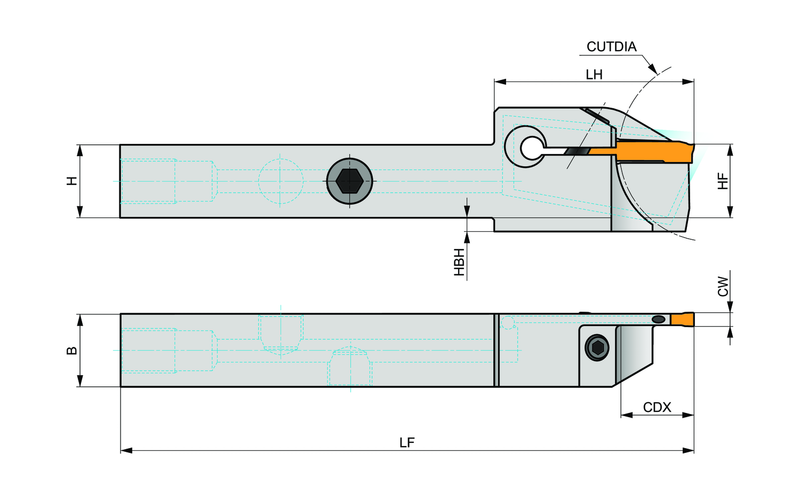

GL3-A1616KFR-16-45 — Line Drawing PDF Download
