GL3-A2020KFL-24-80
GL3-A2020KFL-24-80
GL3-A2020KFL-24-80

GL3-A2020KFL-24-80

UGC DOR8180523
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$524.00 CAD - $524.00 CAD
$524.00 CAD
$524.00 CAD - $524.00 CAD
$524.00 CAD

Vendu en lots de : 1

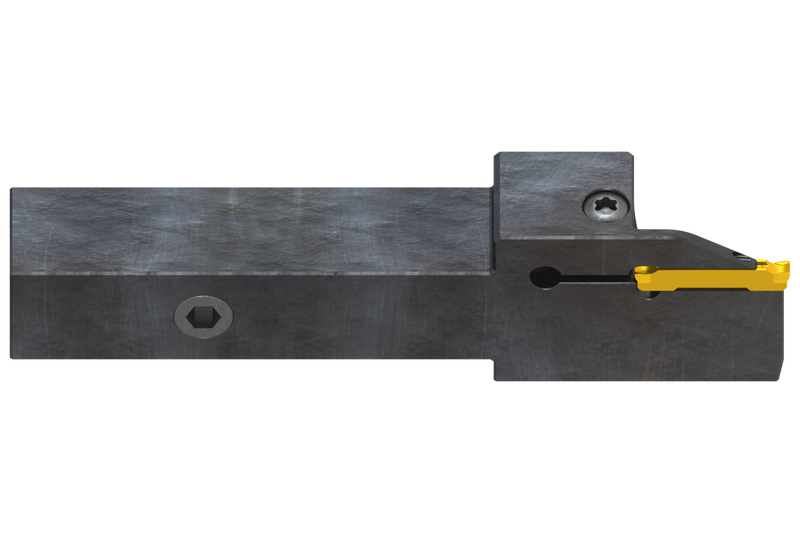

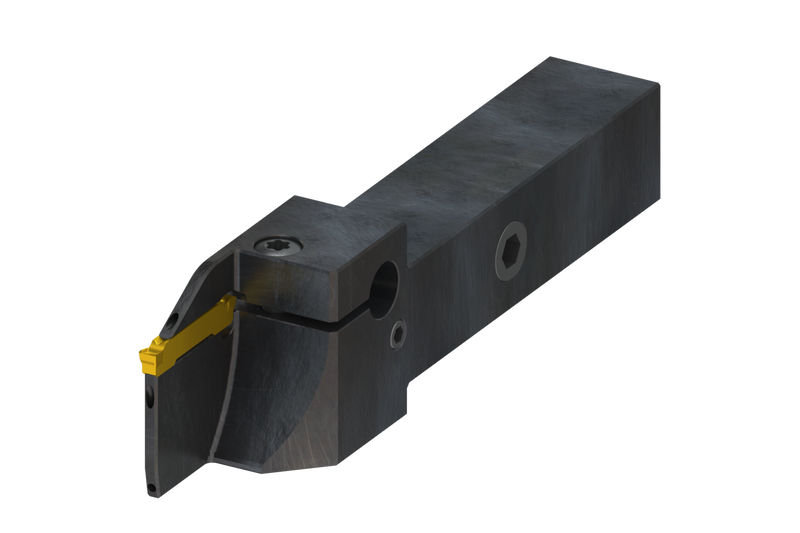

Le GL3-A2020KFL-24-80 est un outil externe gaucher avec arrosage interne pour les plaquettes GL. Il est adapté aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. La conception du corps est renforcée pour une durée de vie plus longue de l'outil et de faibles vibrations. Le corps est traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-A2020KFL-24-80
Product Number8180523
Product FamilyGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.945"
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180523
EAN3603603947481
File Type Download
GL3-A2020KFL-24-80 — 3D Model STP Download

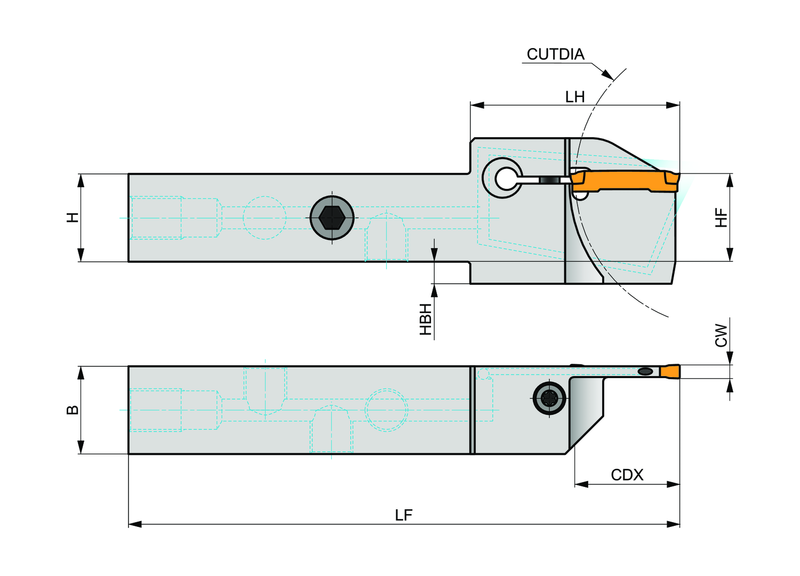

GL3-A2020KFL-24-80 — Line Drawing PDF Download
