GL3-A2525MFL-20-80
GL3-A2525MFL-20-80
GL3-A2525MFL-20-80

GL3-A2525MFL-20-80

UGC DOR8180525
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

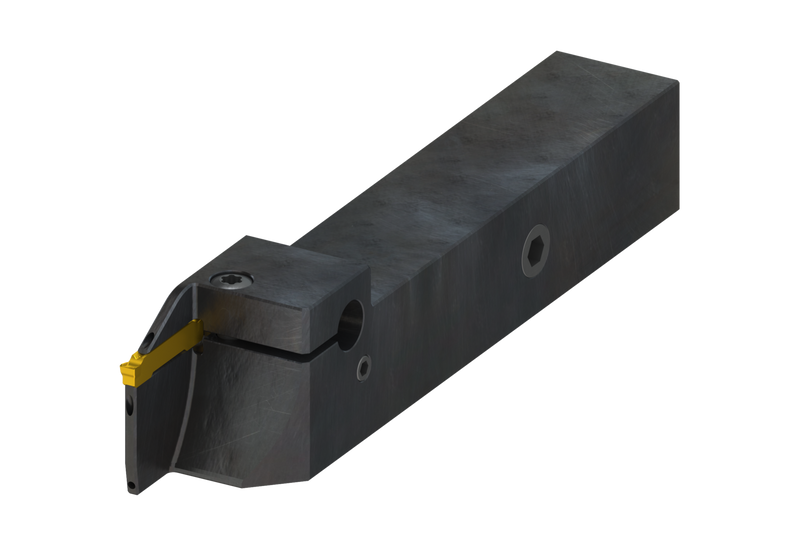

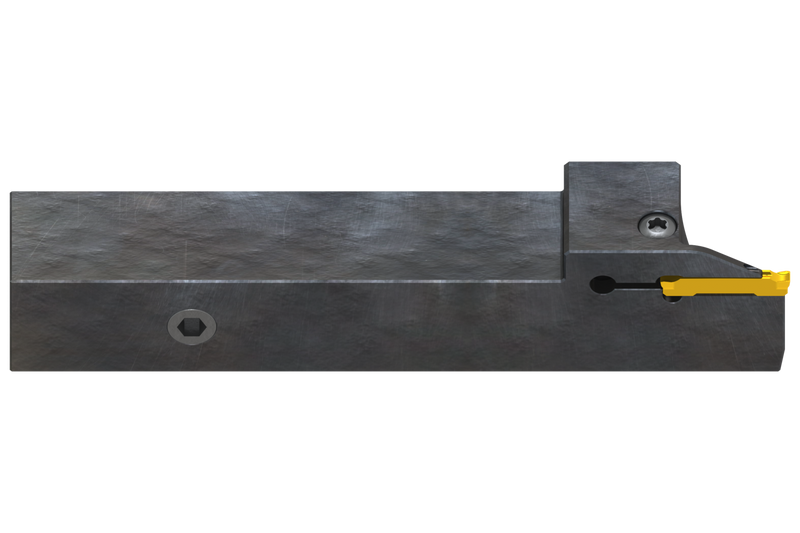

La GL3-A2525MFL-20-80 est un outil externe gaucher avec arrosage interne pour les plaquettes GL. Convient pour les applications de rainurage radial, tronçonnage, tournage et profilage. Conception du corps renforcée pour une durée de vie prolongée de l'outil et de faibles vibrations. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-A2525MFL-20-80
Product Number8180525
Product FamilyGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.787"

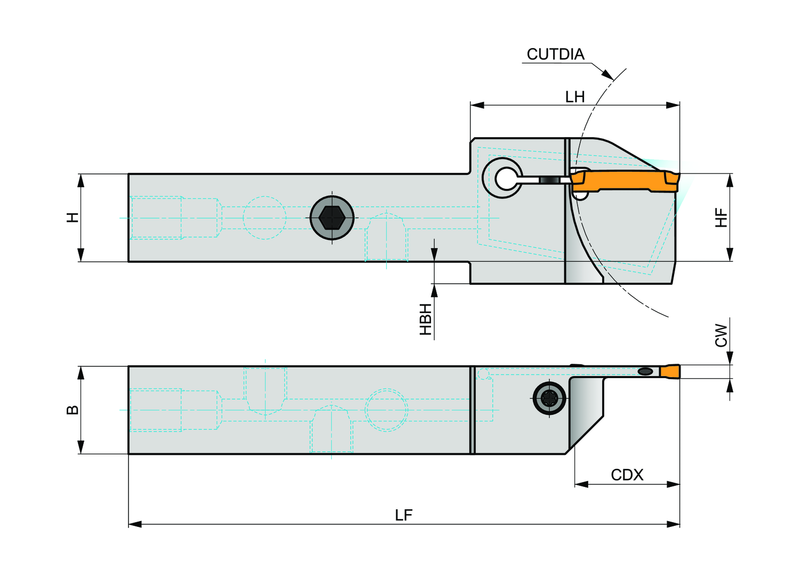

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180525
EAN3603603947504
File Type Download
GL3-A2525MFL-20-80 — 3D Model STP Download
GL3-A2525MFL-20-80 — Line Drawing PDF Download
