GL4-A2525PFL-32-80
GL4-A2525PFL-32-80
GL4-A2525PFL-32-80

GL4-A2525PFL-32-80

UGC DOR8180594
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

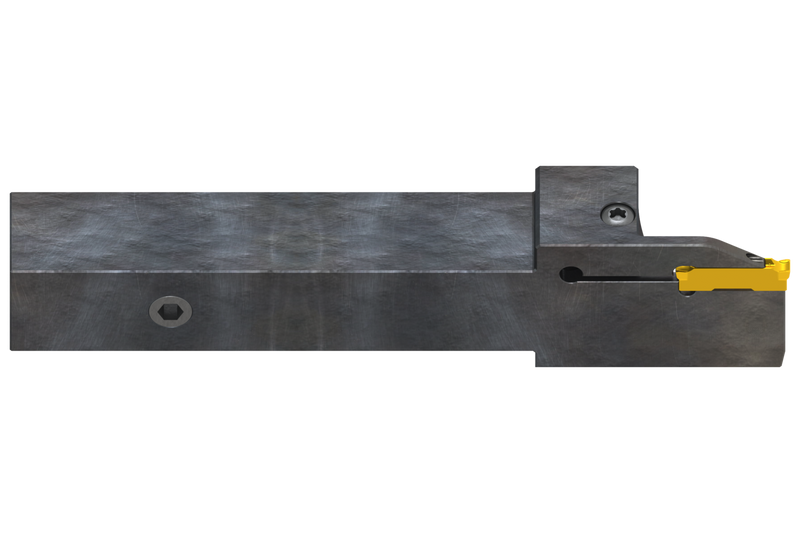

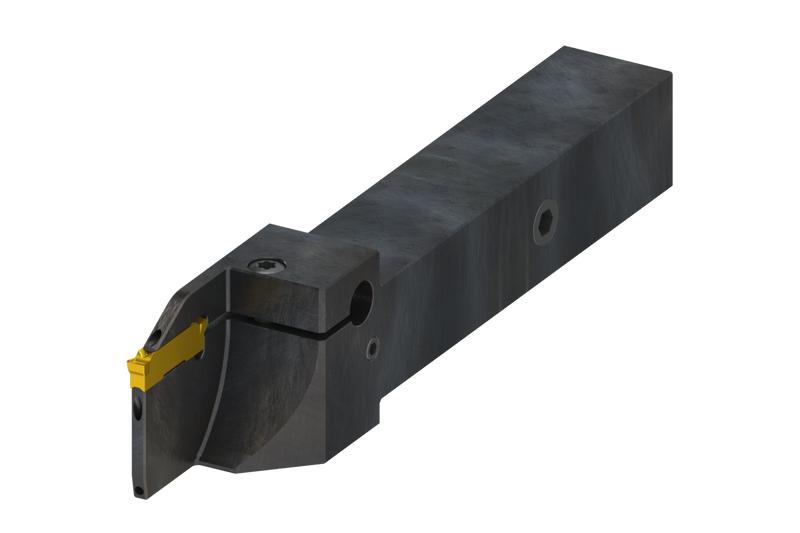

La GL4-A2525PFL-32-80 est un porte-outil externe gauche avec arrosage interne pour les plaquettes GL. Adapté aux applications de gorge radiale, tronçonnage, tournage et profilage. Conception du corps renforcée pour une durée de vie de l'outil prolongée et de faibles vibrations. Corps traité pour une durée de vie de l'outil prolongée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-A2525PFL-32-80
Product Number8180594
Product FamilyGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)1.26"

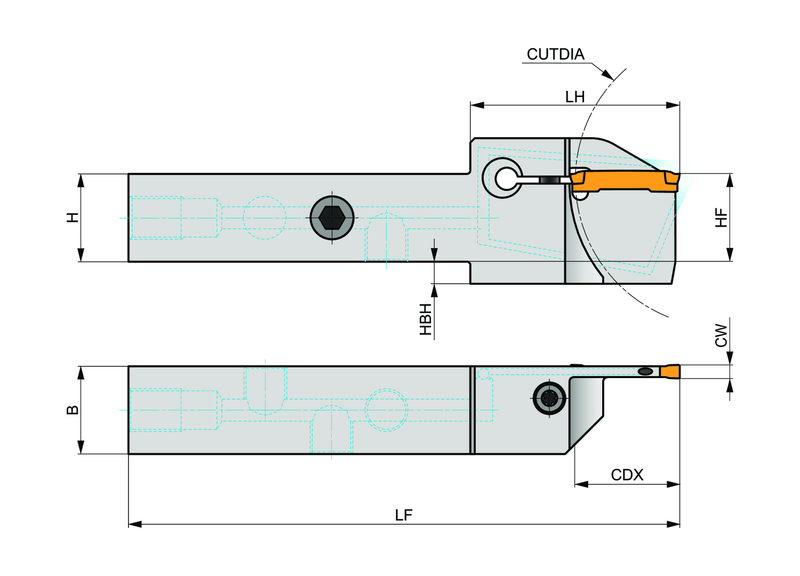

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180594
EAN3603603947641
File Type Download
GL4-A2525PFL-32-80 — 3D Model STP Download
GL4-A2525PFL-32-80 — Line Drawing PDF Download
