GL6-A2525PFR-32-100
GL6-A2525PFR-32-100
GL6-A2525PFR-32-100

GL6-A2525PFR-32-100

UGC DOR8180603
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

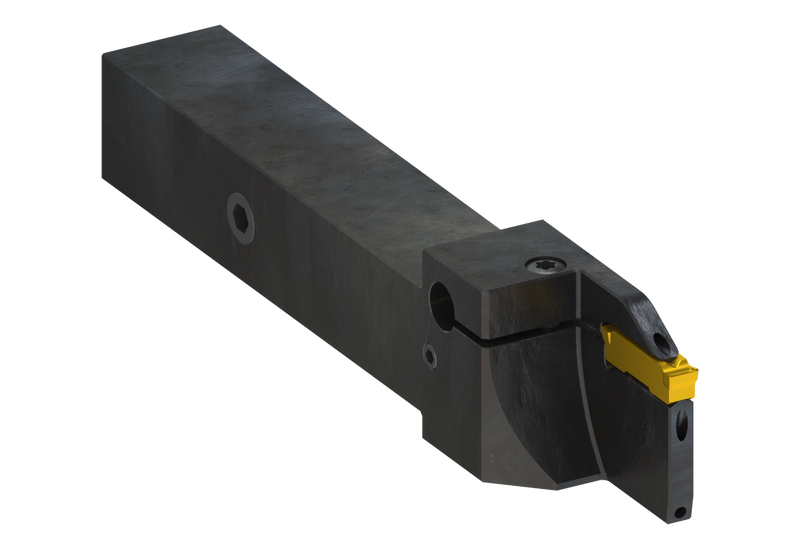

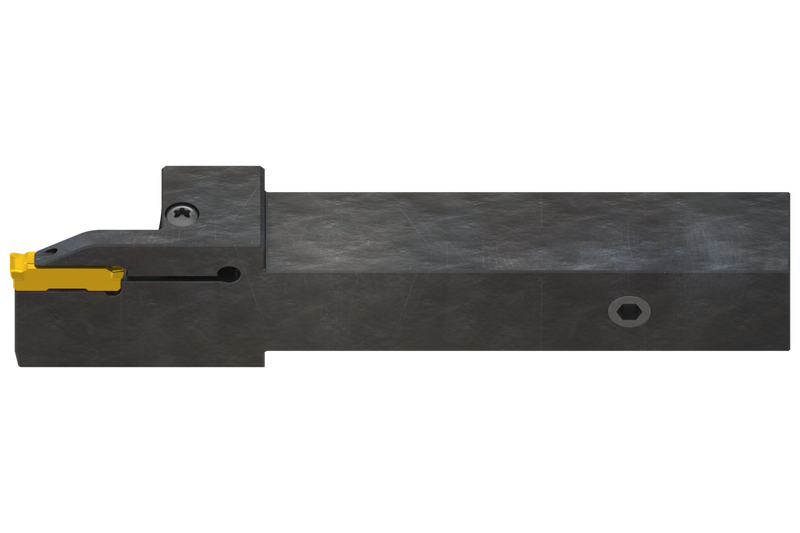

Le GL6-A2525PFR-32-100 est un outil externe droit avec arrosage interne pour plaquettes GL. Il convient pour les applications de gorge radiale, tronçonnage, tournage et profilage. La conception renforcée du corps assure une durée de vie plus longue de l'outil et de faibles vibrations. Corps traité pour une durée de vie plus longue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-A2525PFR-32-100
Product Number8180603
Product FamilyGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)1.26"

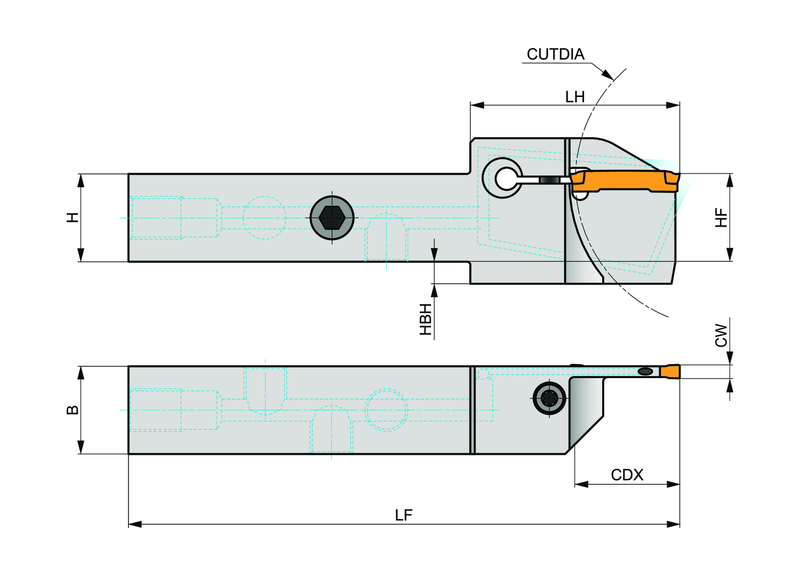

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180603
EAN3603603947733
File Type Download
GL6-A2525PFR-32-100 — 3D Model STP Download
GL6-A2525PFR-32-100 — Line Drawing PDF Download
