GL2-A12CFR-0,79-3,15
GL2-A12CFR-0,79-3,15
GL2-A12CFR-0,79-3,15

GL2-A12CFR-0,79-3,15

UGC DOR8180694
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$524.00 CAD - $524.00 CAD
$524.00 CAD
$524.00 CAD - $524.00 CAD
$524.00 CAD

Vendu en lots de : 1

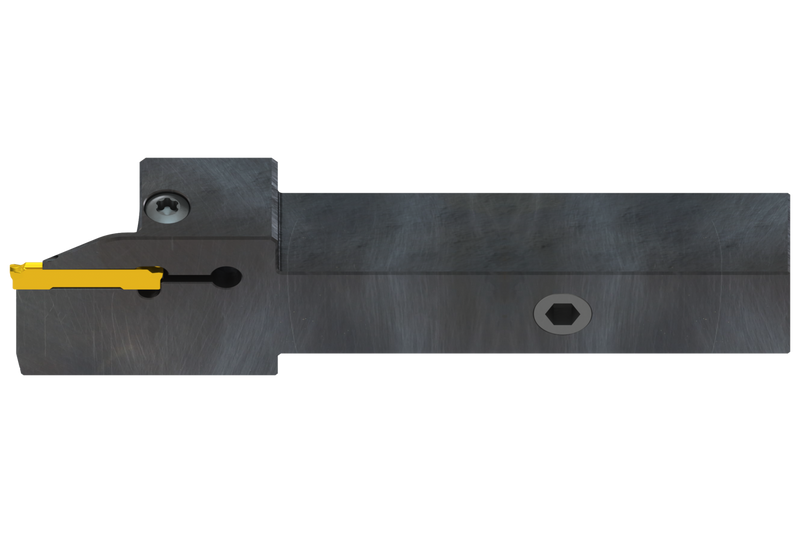

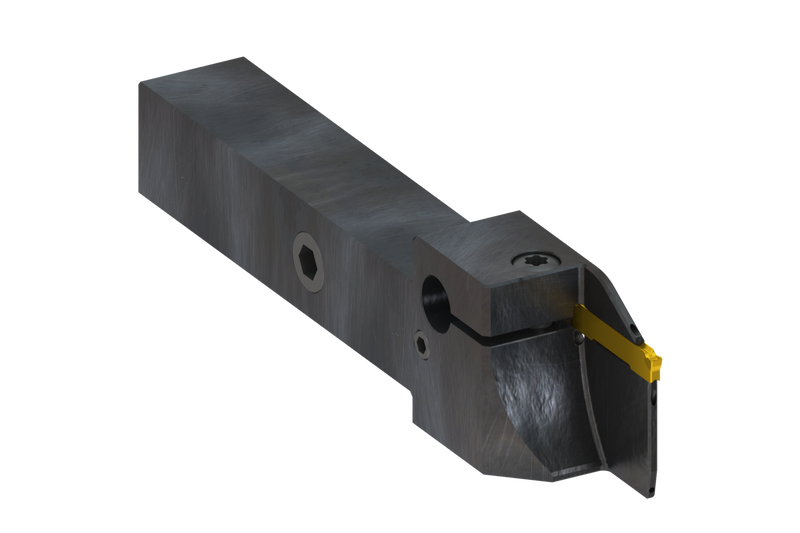

Le GL2-A12CFR-.79-3.15 est un porte-outil externe droit/gauche avec arrosage interne pour les plaquettes GL. Adapté aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. Conception du corps renforcée pour une durée de vie de l'outil accrue et de faibles vibrations. Corps traité pour une durée de vie de l'outil accrue.

For more information about this product, click here

Identification
Ordering Code (ANSI)GL2-A12CFR-0,79-3,15
Product Name (ISO)GL2-A12CFR-.79-3.15
Product Number8180694
Product FamilyIGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.79"

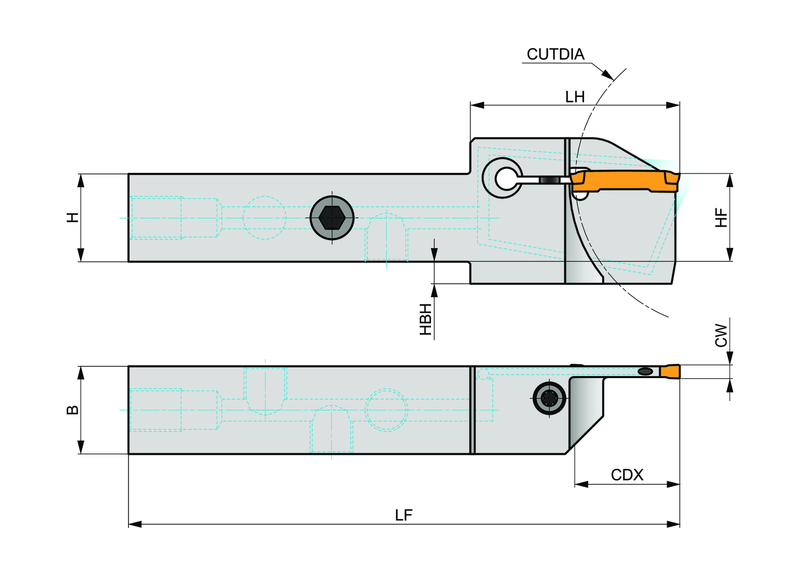

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180694
EAN3603603947795
File Type Download
GL2-A12CFR-0,79-3,15 — 3D Model STP Download
GL2-A12CFR-0,79-3,15 — Line Drawing PDF Download
