GL3-A08AFL-.47-1.57
GL3-A08AFL-.47-1.57
GL3-A08AFL-.47-1.57

GL3-A08AFL-.47-1.57

UGC DOR8180697
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$455.00 CAD - $455.00 CAD
$455.00 CAD
$455.00 CAD - $455.00 CAD
$455.00 CAD

Vendu en lots de : 1

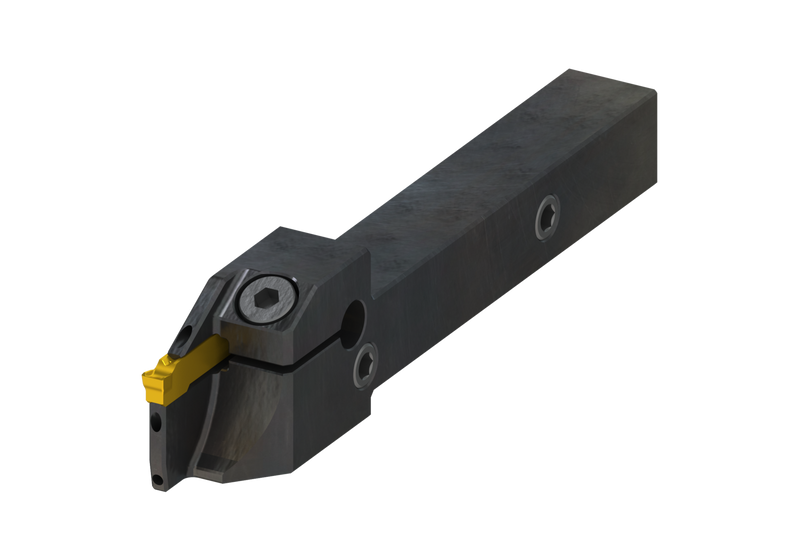

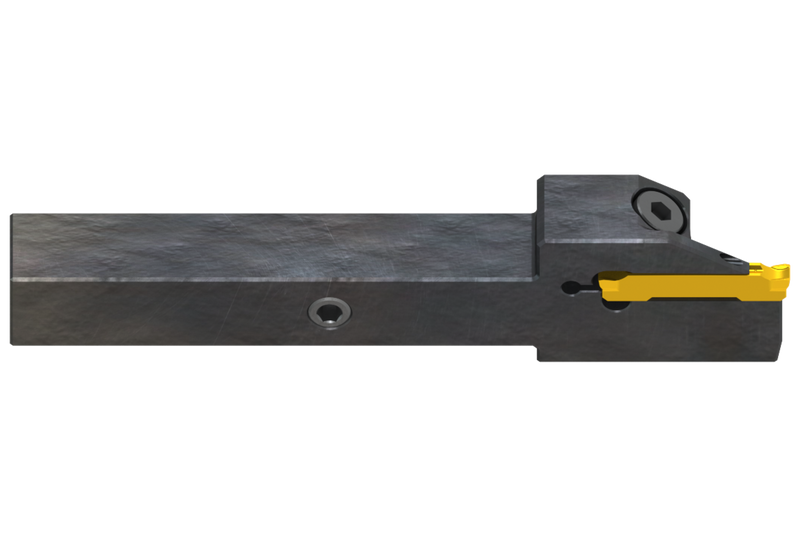

Le GL3-A08AFL-.47-1.57 est un porte-outil externe pour outil droit/gauche avec arrosage interne pour les plaquettes GL, conçu pour les machines à poupée mobile et offrant un accès facile au serrage de la plaquette. Adapté aux applications de gorge radiale, tronçonnage, tournage et profilage. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI)GL3-A08AFL-,47-1,57
Product Name (ISO)GL3-A08AFL-.47-1,57
Product Number8180697
Product FamilyIGLAF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.47"

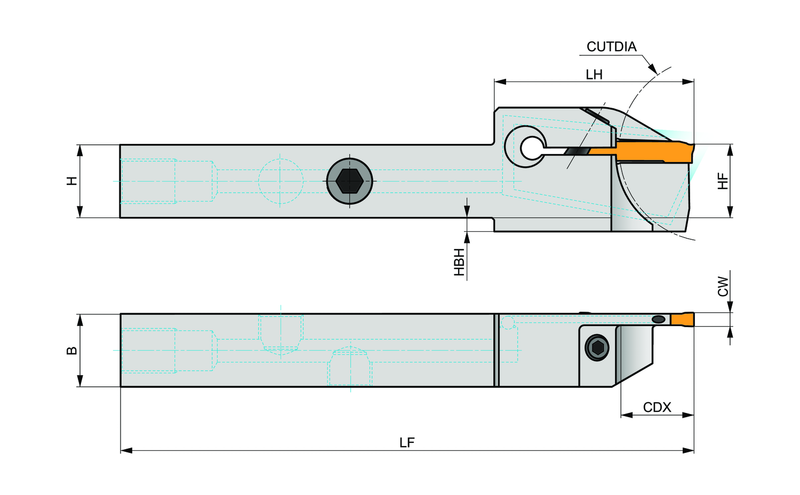

Dimensions
Functional Length — in (LF)4.0"
Functional Length — mm (LF)102.0 mm
Shank Height — mm (H)0.5 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180697
EAN3603603947825
File Type Download
GL3-A08AFL-.47-1.57 — 3D Model STP Download
GL3-A08AFL-.47-1.57 — Line Drawing PDF Download
