GL3-A10CFR-.63-1.78
GL3-A10CFR-.63-1.78
GL3-A10CFR-.63-1.78

GL3-A10CFR-.63-1.78

UGC DOR8180700
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$453.00 CAD - $453.00 CAD
$453.00 CAD
$453.00 CAD - $453.00 CAD
$453.00 CAD

Vendu en lots de : 1

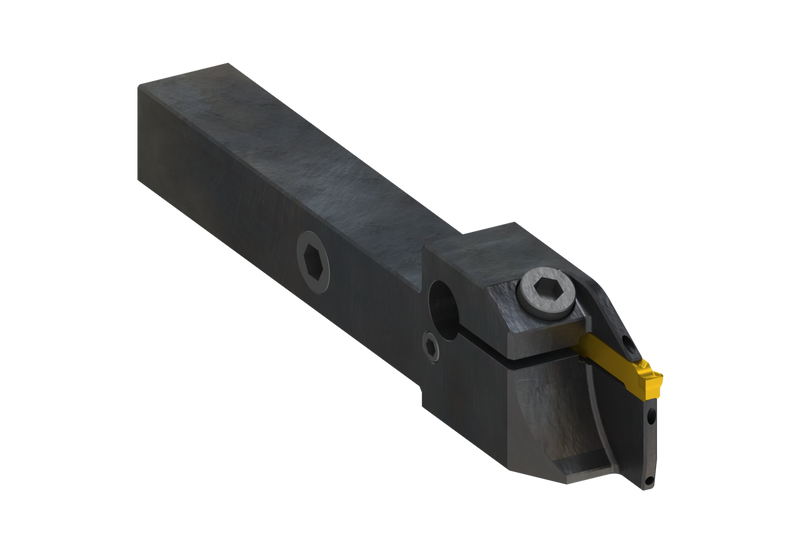

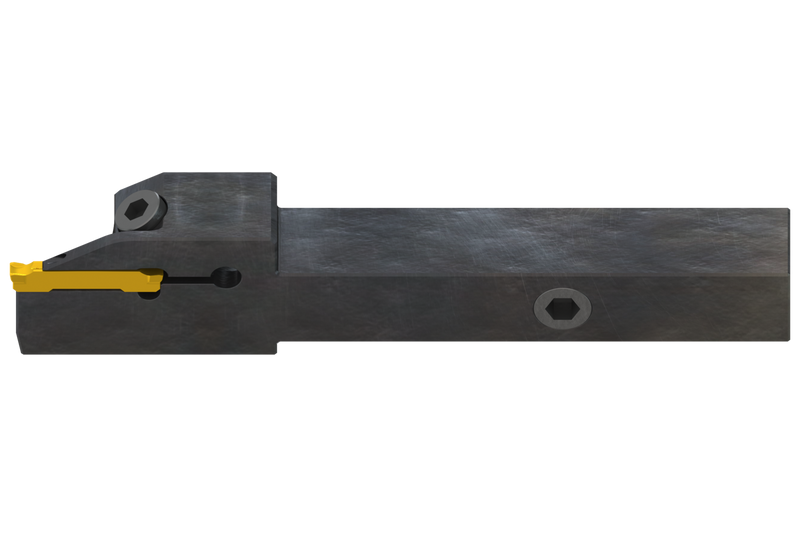

GL3-A10CFR-.63-1.78 est un porte-outil externe, droitier/gaucher avec arrosage interne pour plaquettes GL, conçu pour les tours automatiques et un accès facile au serrage de la plaquette. Convient pour les applications de rainurage radial, tronçonnage, tournage et profilage. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-A10CFR-.63-1.78
Product Number8180700
Product FamilyIGLAF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.63"
Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.625 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180700
EAN3603603947856
File Type Download
GL3-A10CFR-.63-1.78 — 3D Model STP Download

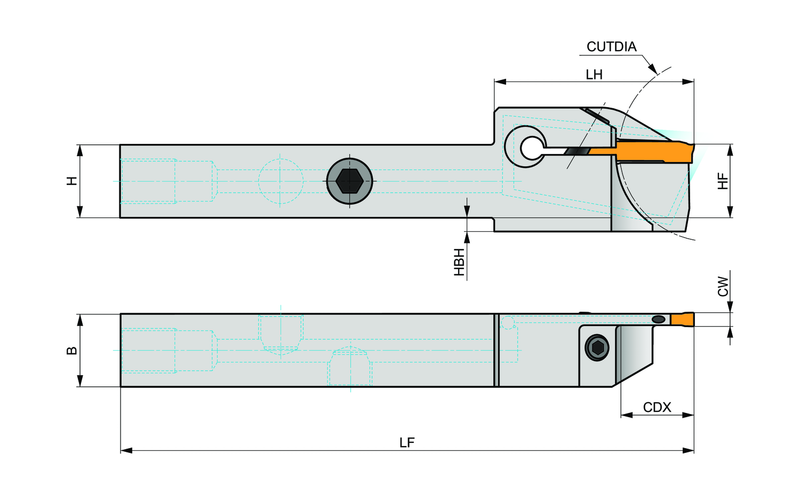

GL3-A10CFR-.63-1.78 — Line Drawing PDF Download
