GL3-A16EFL-1,26-3,15
GL3-A16EFL-1,26-3,15
GL3-A16EFL-1,26-3,15

GL3-A16EFL-1,26-3,15

UGC DOR8180707
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

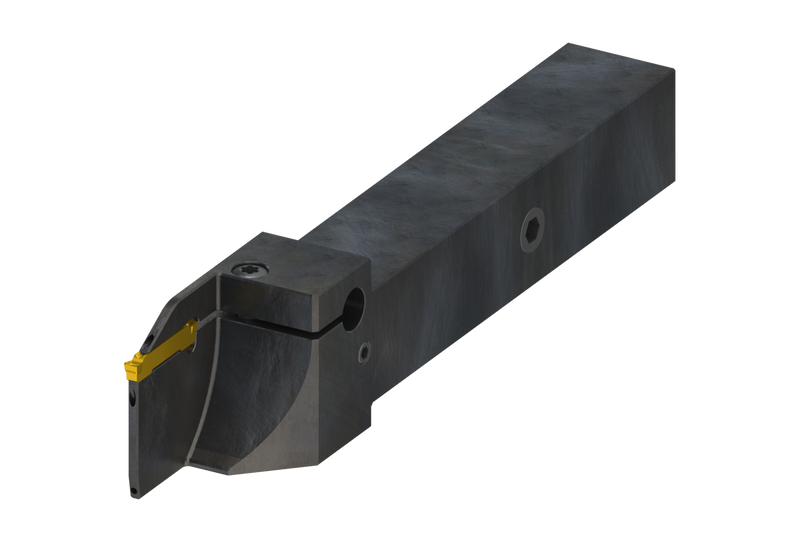

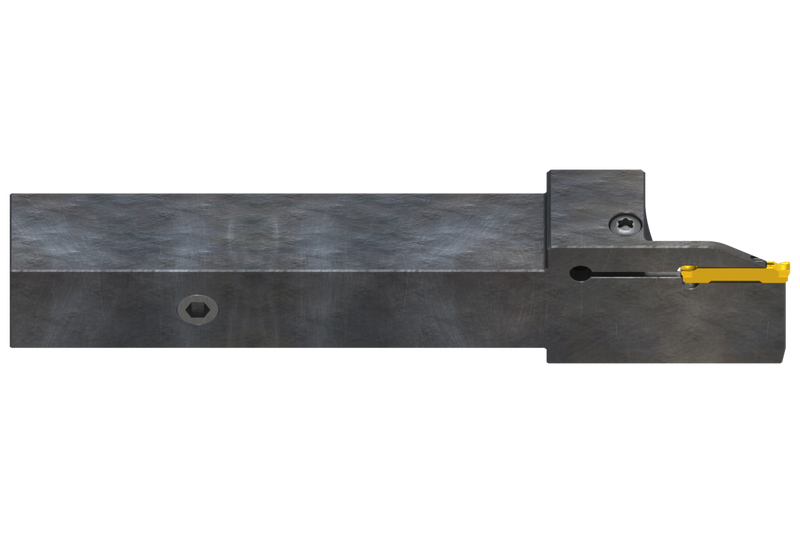

Le GL3-A16EFL-1.26-3.15 est un porte-outil externe droit/gauche avec arrosage interne pour plaquettes GL. Adapté aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. Conception du corps renforcée pour une durée de vie accrue de l'outil et de faibles vibrations. Corps traité pour une plus longue durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-A16EFL-1.26-3.15
Product Number8180707
Product FamilyIGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)1.26"

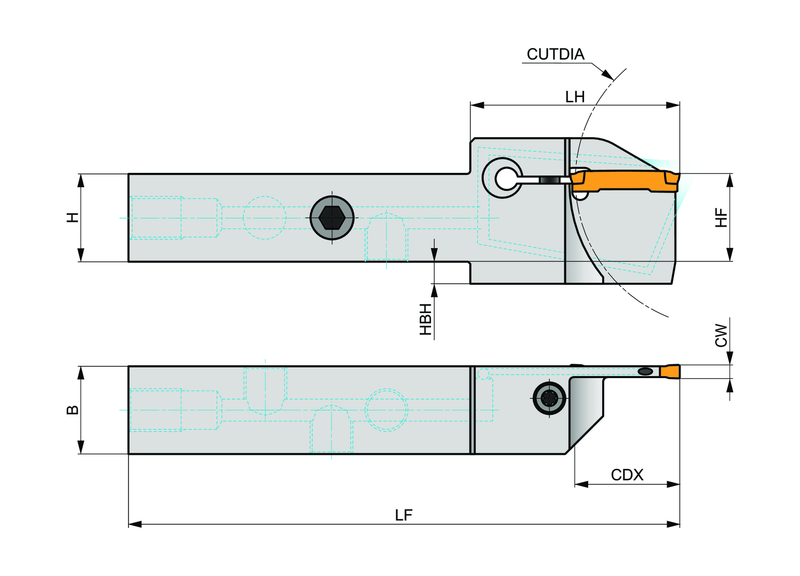

Dimensions
Functional Length — in (LF)7.0"
Functional Length — mm (LF)178.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180707
EAN3603603947924
File Type Download
GL3-A16EFL-1,26-3,15 — 3D Model STP Download
GL3-A16EFL-1,26-3,15 — Line Drawing PDF Download
