GL5-A12CFR-.94-3.15
GL5-A12CFR-.94-3.15
GL5-A12CFR-.94-3.15

GL5-A12CFR-.94-3.15

UGC DOR8180734
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$550.00 CAD - $550.00 CAD
$550.00 CAD
$550.00 CAD - $550.00 CAD
$550.00 CAD

Vendu en lots de : 1

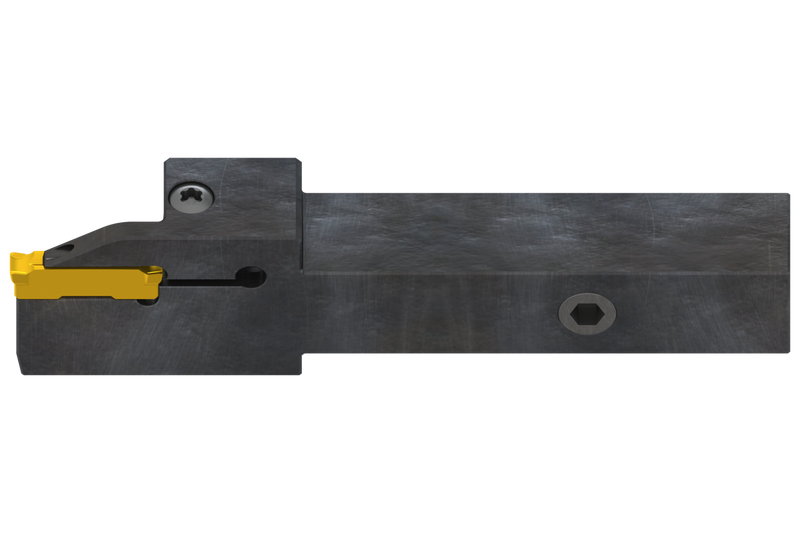

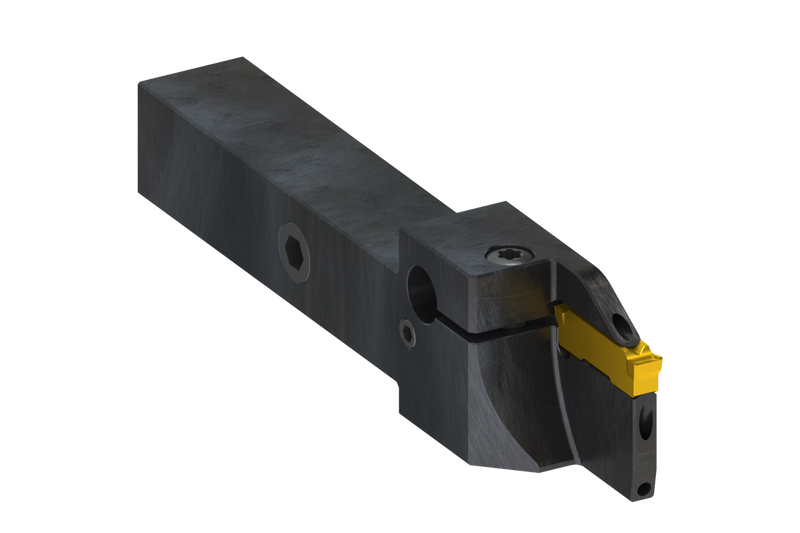

Le GL5-A12CFR-.94-3.15 est un porte-outil externe pour inserts GL, droit/gauche, avec arrosage interne. Il convient aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. La conception renforcée du corps permet une durée de vie plus longue de l'outil et de faibles vibrations. Le corps est traité pour une durée de vie plus longue.

For more information about this product, click here

Identification
Ordering Code (ANSI)GL5-A12CFR-.94-3.15
Product Name (ISO)GL5-A12CFR-,94-3,15
Product Number8180734
Product FamilyIGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.94"

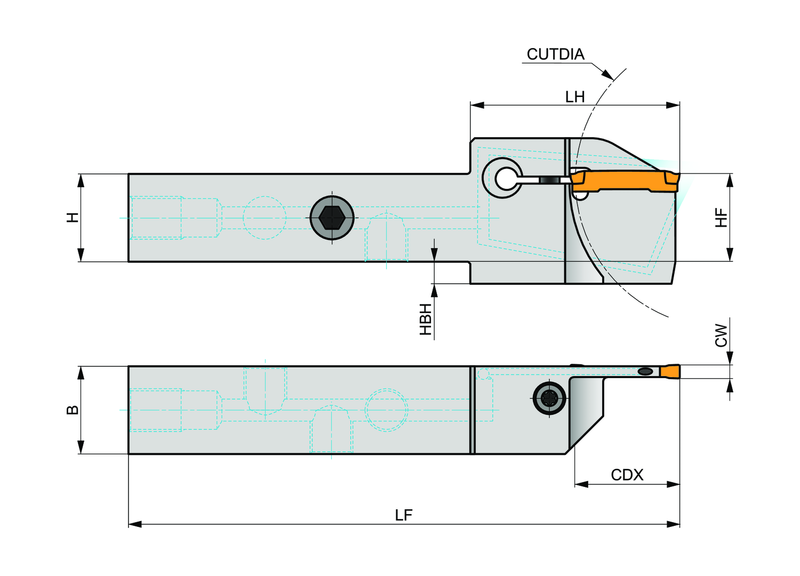

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180734
EAN3603603950078
File Type Download
GL5-A12CFR-.94-3.15 — 3D Model STP Download
GL5-A12CFR-.94-3.15 — Line Drawing PDF Download
