GL5-A16EFR-1.26-3.94
GL5-A16EFR-1.26-3.94
GL5-A16EFR-1.26-3.94

GL5-A16EFR-1.26-3.94

UGC DOR8180736
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

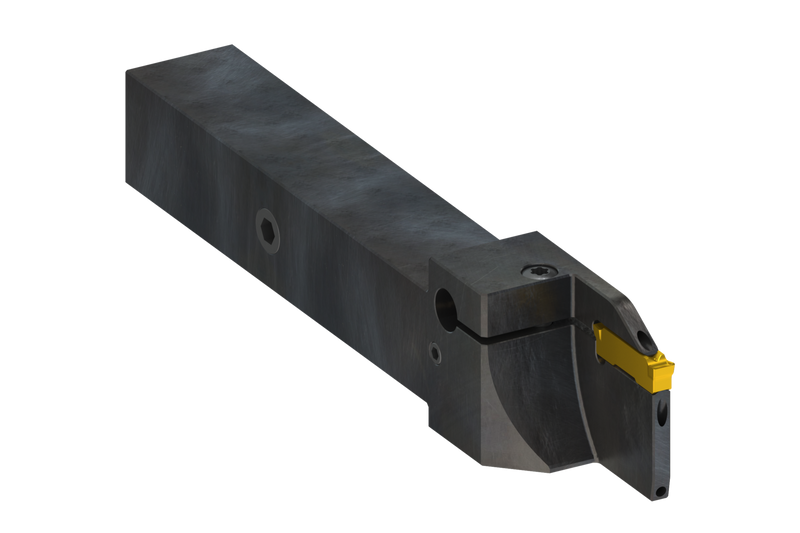

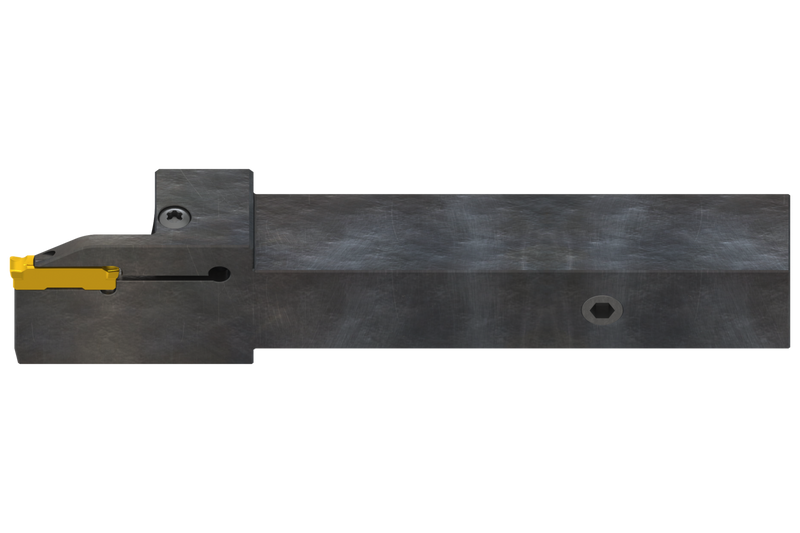

GL5-A16EFR-1.26-3.94 est un porte-outil externe droitier/gaucher avec arrosage interne pour les plaquettes GL. Convient pour les applications de rainurage radial, de tronçonnage, de tournage et de profilage. Conception du corps renforcée pour une durée de vie de l'outil plus longue et de faibles vibrations. Corps traité pour une durée de vie de l'outil plus longue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL5-A16EFR-1.26-3.94
Product Number8180736
Product FamilyIGLAF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)1.26"

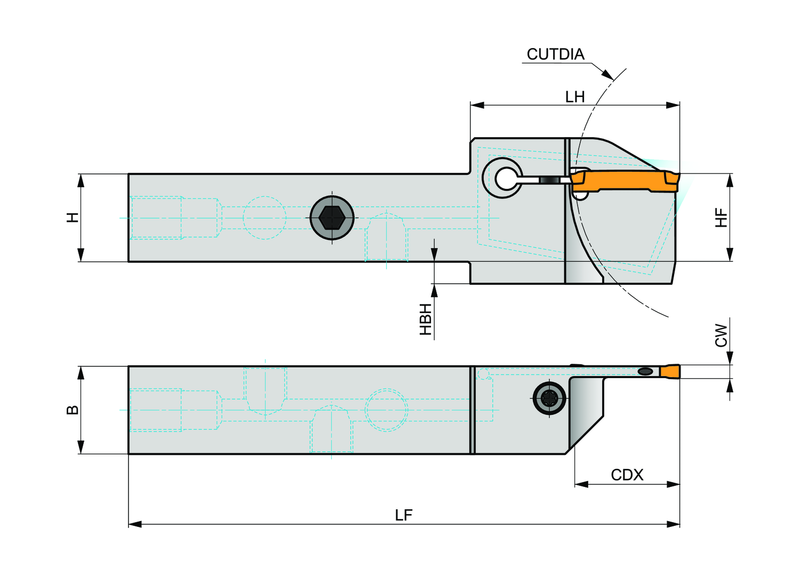

Dimensions
Functional Length — in (LF)7.0"
Functional Length — mm (LF)178.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8180736
EAN3603603950092
File Type Download
GL5-A16EFR-1.26-3.94 — 3D Model STP Download
GL5-A16EFR-1.26-3.94 — Line Drawing PDF Download
