S20K-SDUCL07-S
S20K-SDUCL07-S
S20K-SDUCL07-S

S20K-SDUCL07-S

UGC DOR8181047
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$260.00 CAD - $260.00 CAD
$260.00 CAD
$260.00 CAD - $260.00 CAD
$260.00 CAD

Vendu en lots de : 1

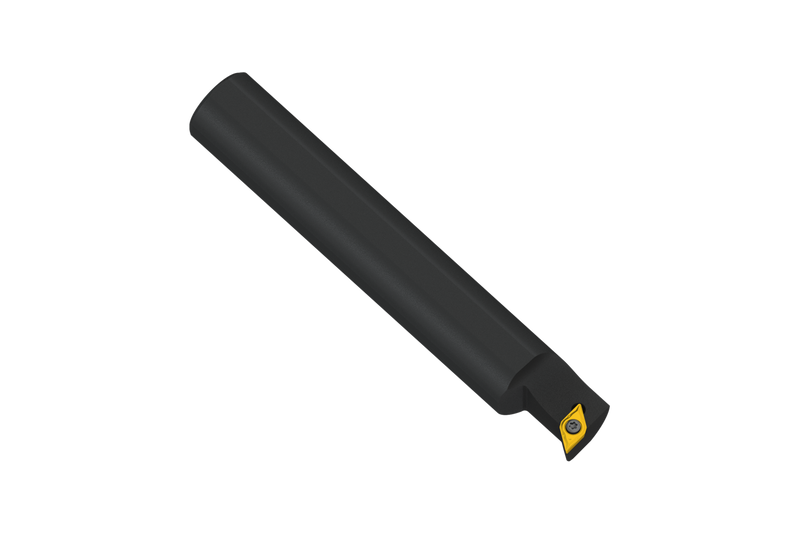

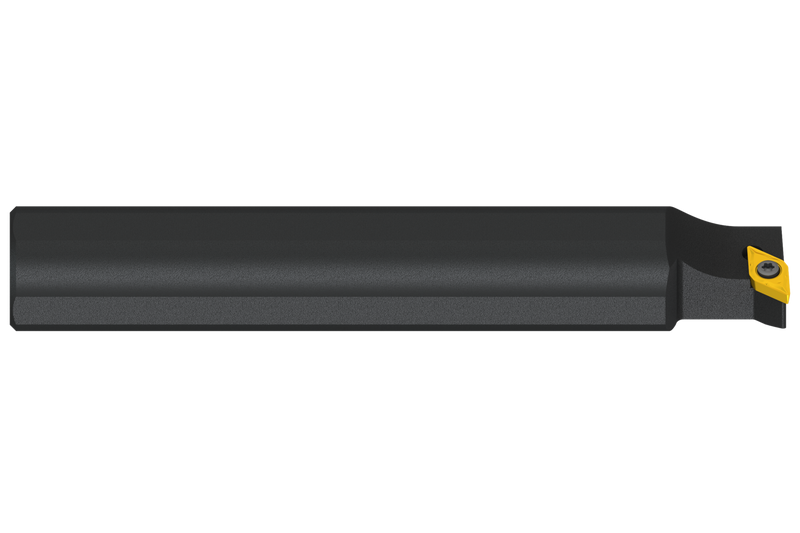

Outil de tournage à plaquette vissée également compatible avec les machines à tête coulissante pour loger un insert positif rhombique 55° avec un diamètre de cercle inscrit de 6,35mm, 2,38mm d'épaisseur (désignation ISO DC.. 0702.. ), coupe à gauche 93° avec un corps déporté, en acier sans trou d'arrosage, 20mm de diamètre x 125mm de long

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20K-SDUCL07-S
Product Number8181047
Product FamilySDUCL EXT

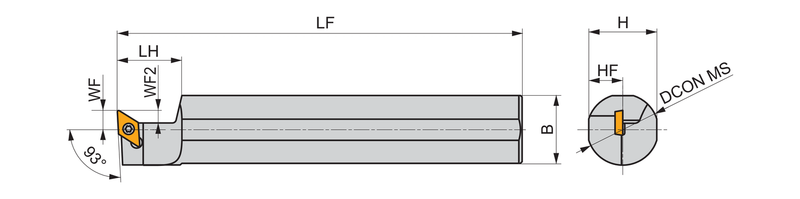

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
Reference Numbers
EDP Number8181047
EAN3603603946804
File Type Download
S20K-SDUCL07-S — 3D Model STP Download
S20K-SDUCL07-S — 2D Model DXF Download
S20K-SDUCL07-S — Line Drawing PDF Download
