S22K-SDUCL07-S
S22K-SDUCL07-S
S22K-SDUCL07-S

S22K-SDUCL07-S

UGC DOR8181048
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$283.00 CAD - $283.00 CAD
$283.00 CAD
$283.00 CAD - $283.00 CAD
$283.00 CAD

Vendu en lots de : 1

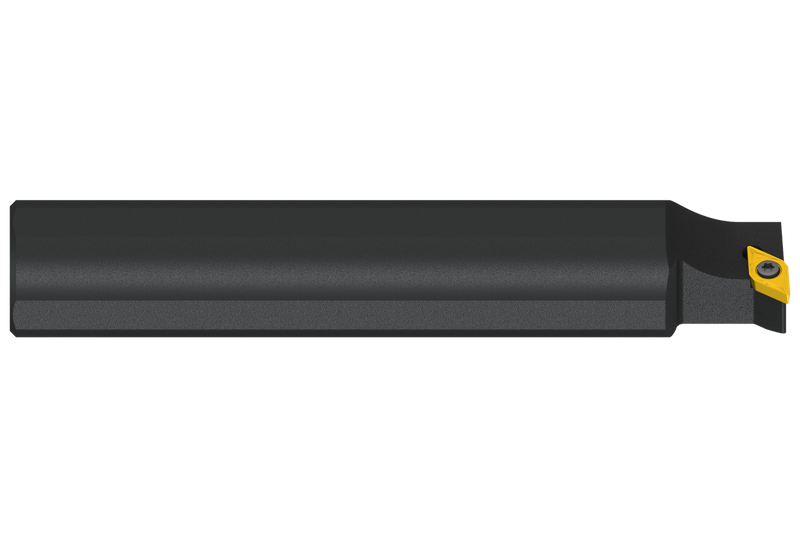

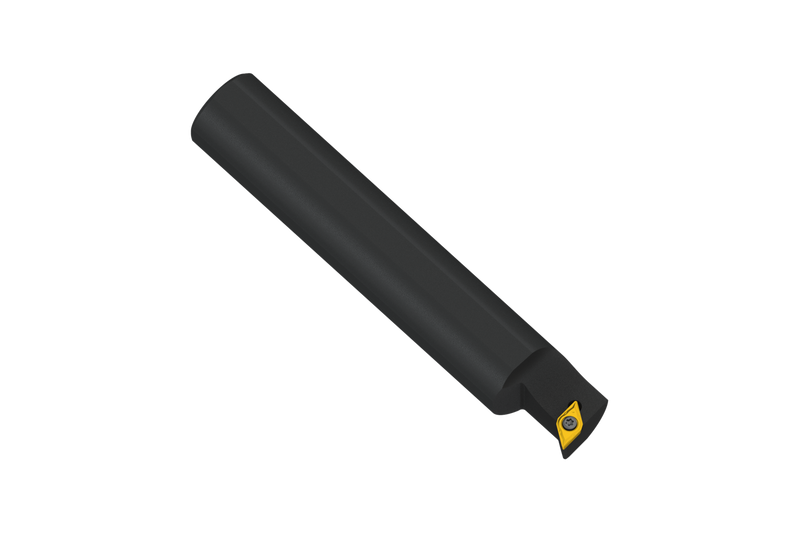

Outil de tournage à plaquette vissée également compatible avec les machines à poupée mobile pour recevoir une plaquette positive en forme de losange à 55° avec un diamètre de cercle inscrit de 6,35mm, épaisseur de 2,38mm (désignation ISO DC.. 0702..), coupe à gauche à 93° avec un corps déporté, en acier sans trou d'arrosage, diamètre 22mm x 125mm de long

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S22K-SDUCL07-S
Product Number8181048
Product FamilyEXT SDUCL

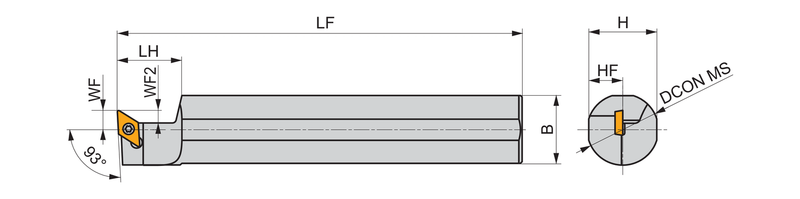

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Tool Information
Reference Numbers
EDP Number8181048
EAN3603603946811
File Type Download
S22K-SDUCL07-S — 3D Model STP Download
S22K-SDUCL07-S — 2D Model DXF Download
S22K-SDUCL07-S — Line Drawing PDF Download
