SDXCL 1212 K 07-S
SDXCL 1212 K 07-S
SDXCL 1212 K 07-S

SDXCL 1212 K 07-S

UGC DOR8181049
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$162.00 CAD - $162.00 CAD
$162.00 CAD
$162.00 CAD - $162.00 CAD
$162.00 CAD

Vendu en lots de : 1

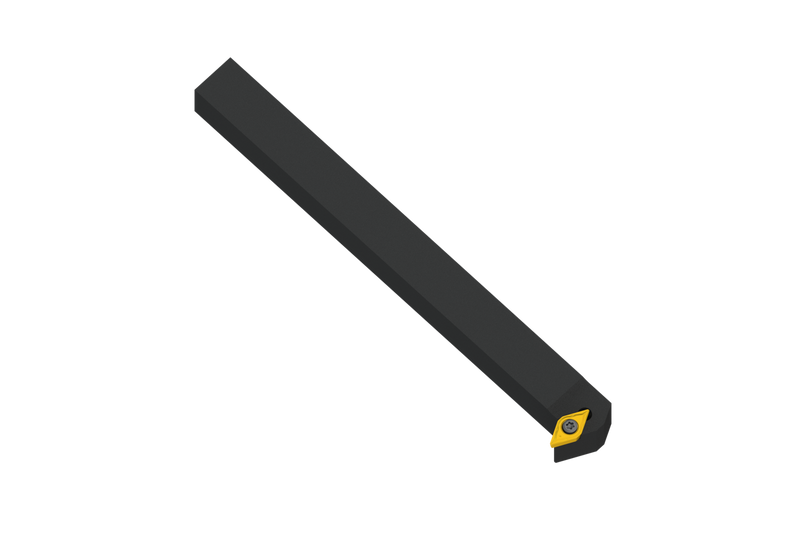

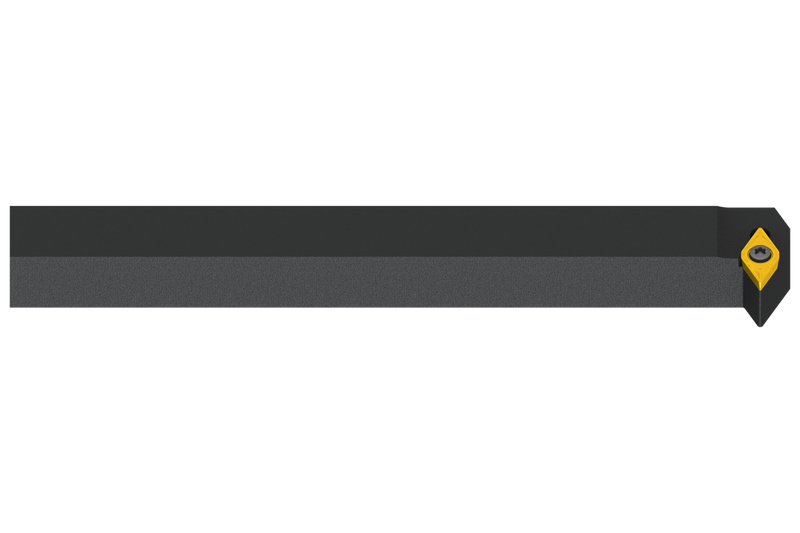

Outil de tournage à plaquette vissée également compatible avec les machines à poupée mobile pour l'utilisation d'une plaquette positive en forme de losange à 55° avec un diamètre de cercle inscrit de 6,35 mm, 2,38 mm d'épaisseur (désignation ISO DC.. 0702.. ), style d'outil spécial à gauche, hauteur d'outil de 12 mm x largeur de 12 mm x 125 mm de long pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDXCL 1212 K 07-S
Product Number8181049
Product FamilySDXC(RL) EXT

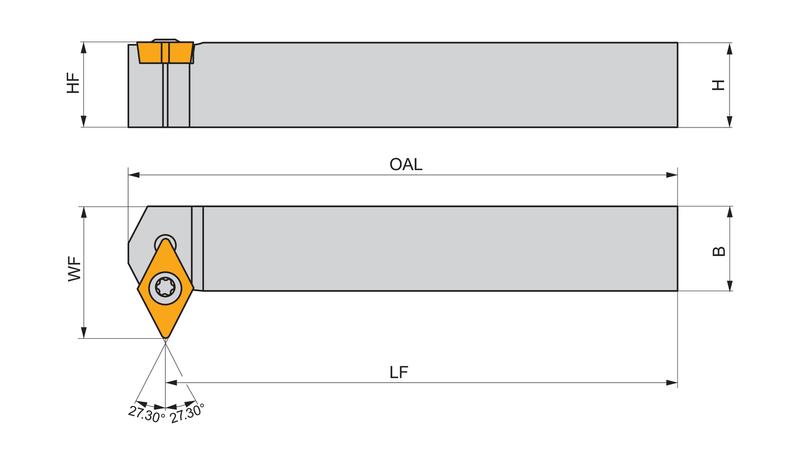

Dimensions
Overall Length — in (OAL)5.118"
Overall Length — mm (OAL)130.0 mm
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Reference Numbers
EDP Number8181049
EAN3603603946828
File Type Download
SDXCL 1212 K 07-S — 3D Model STP Download
SDXCL 1212 K 07-S — 2D Model DXF Download
SDXCL 1212 K 07-S — Line Drawing PDF Download
