SDXCR 1616 K 11-S
SDXCR 1616 K 11-S
SDXCR 1616 K 11-S

SDXCR 1616 K 11-S

UGC DOR8181052
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$162.00 CAD - $162.00 CAD
$162.00 CAD
$162.00 CAD - $162.00 CAD
$162.00 CAD

Vendu en lots de : 1

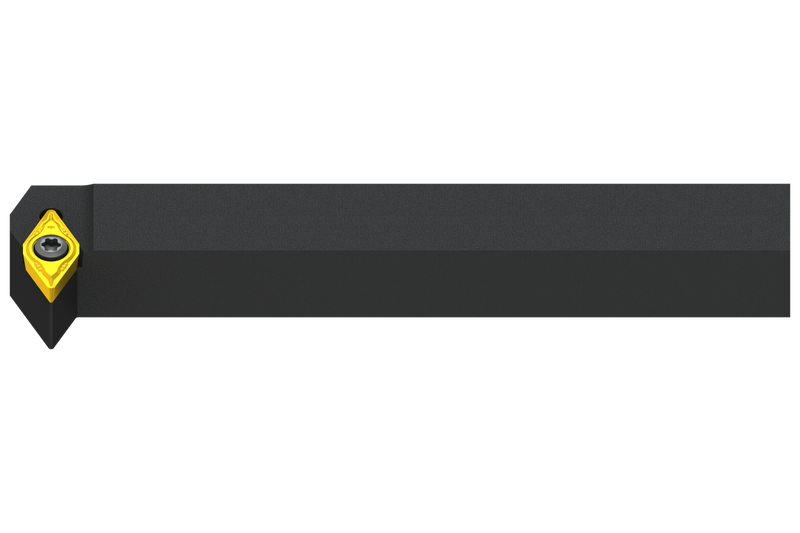

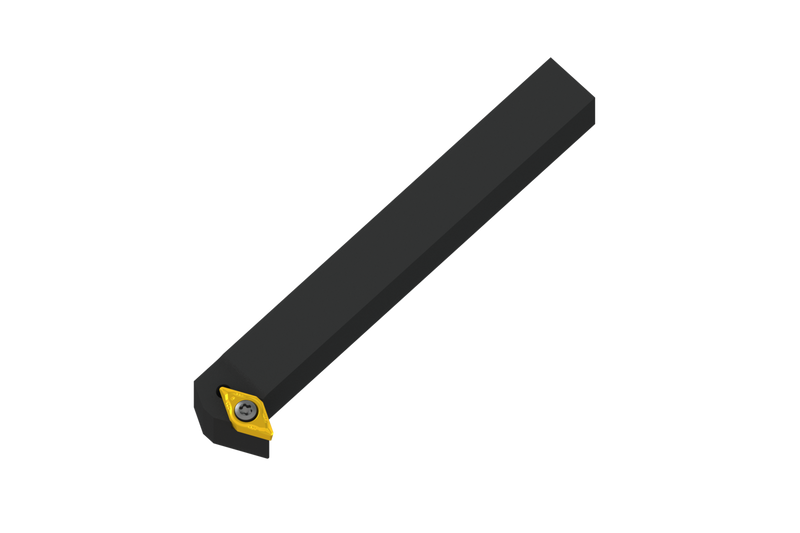

Outil de chariotage à bride vissée également compatible avec les machines à poupée mobile, pour la fixation d'un insert positif en forme de losange à 55° avec un diamètre de cercle inscrit de 9,525 mm et une épaisseur de 3,97 mm (désignation ISO DC.. 11T3..), de style spécial droit, 16 mm de hauteur x 16 mm de largeur x 125 mm de longueur pour le chanfreinage, le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDXCR 1616 K 11-S
Product Number8181052
Product FamilySDXC(RL) EXT

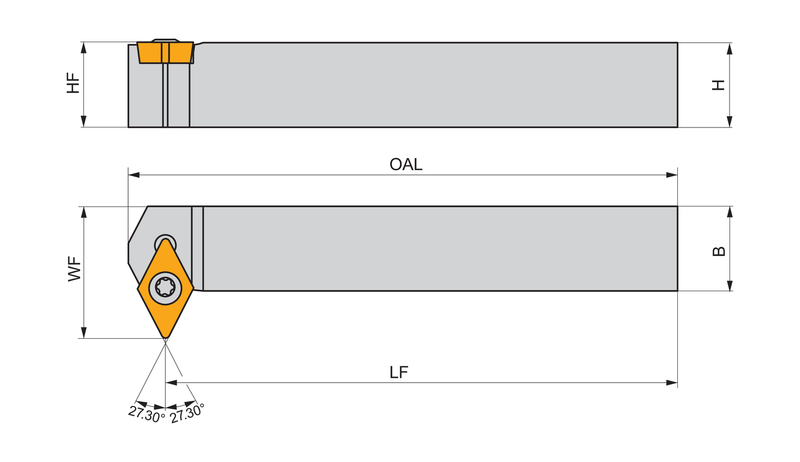

Dimensions
Overall Length — in (OAL)5.197"
Overall Length — mm (OAL)132.0 mm
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Reference Numbers
EDP Number8181052
EAN3603603946859
File Type Download
SDXCR 1616 K 11-S — 3D Model STP Download
SDXCR 1616 K 11-S — 2D Model DXF Download
SDXCR 1616 K 11-S — Line Drawing PDF Download
