SVJBR 1616 K 11-S
SVJBR 1616 K 11-S
SVJBR 1616 K 11-S

SVJBR 1616 K 11-S

UGC DOR8181060
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$200.00 CAD - $200.00 CAD
$200.00 CAD
$200.00 CAD - $200.00 CAD
$200.00 CAD

Vendu en lots de : 1

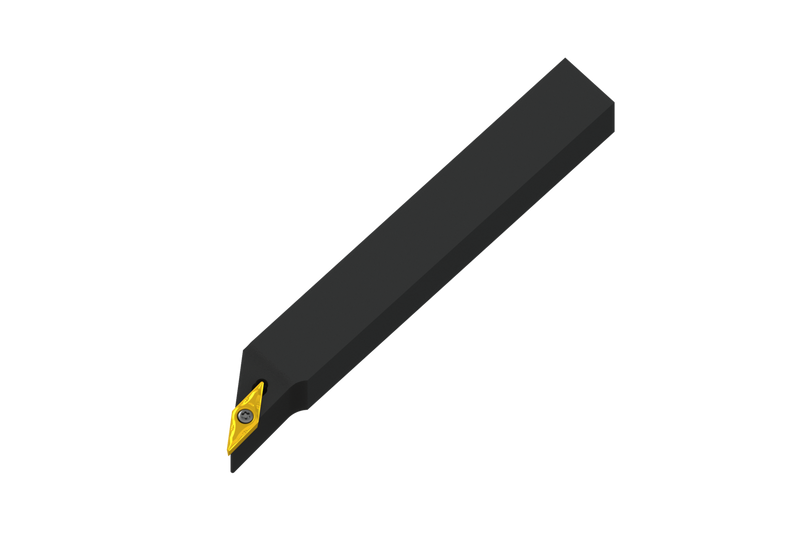

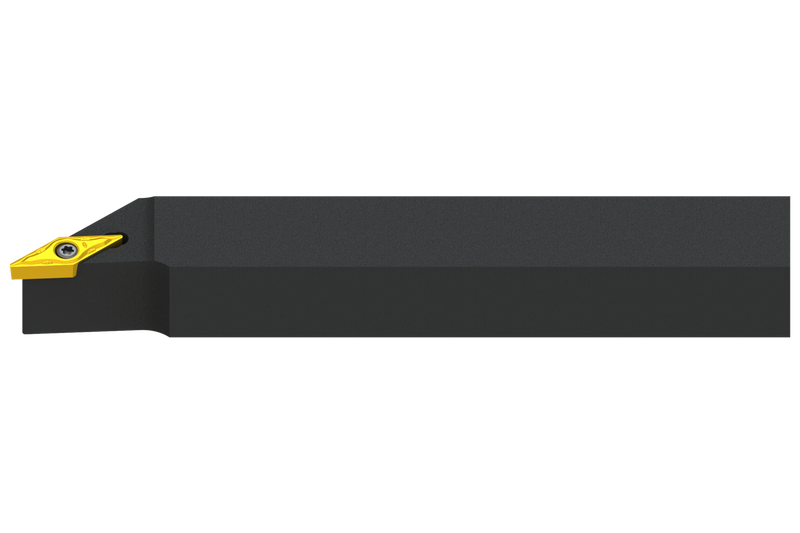

Porte-plaquette à vis, également compatible avec les machines à tête coulissante, pour plaquette positive rhomboïde 35° avec un diamètre de cercle inscrit de 6,35 mm, 3,18 mm d'épaisseur (désignation ISO VB.. 1103.., VC.. 1103..), coupe à droite 93° avec un corps déporté, hauteur d'outil 16 mm x largeur 16 mm x longueur 125 mm pour le tournage conique, le copiage monodirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJBR 1616 K 11-S
Product Number8181060
Product FamilySVJB(C)(RL) EXT

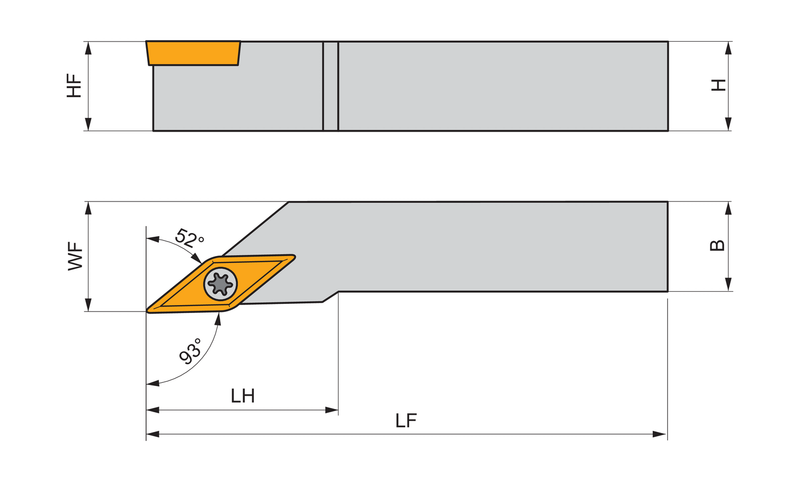

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8181060
EAN3603603946934
File Type Download
SVJBR 1616 K 11-S — 3D Model STP Download
SVJBR 1616 K 11-S — 2D Model DXF Download
SVJBR 1616 K 11-S — Line Drawing PDF Download
