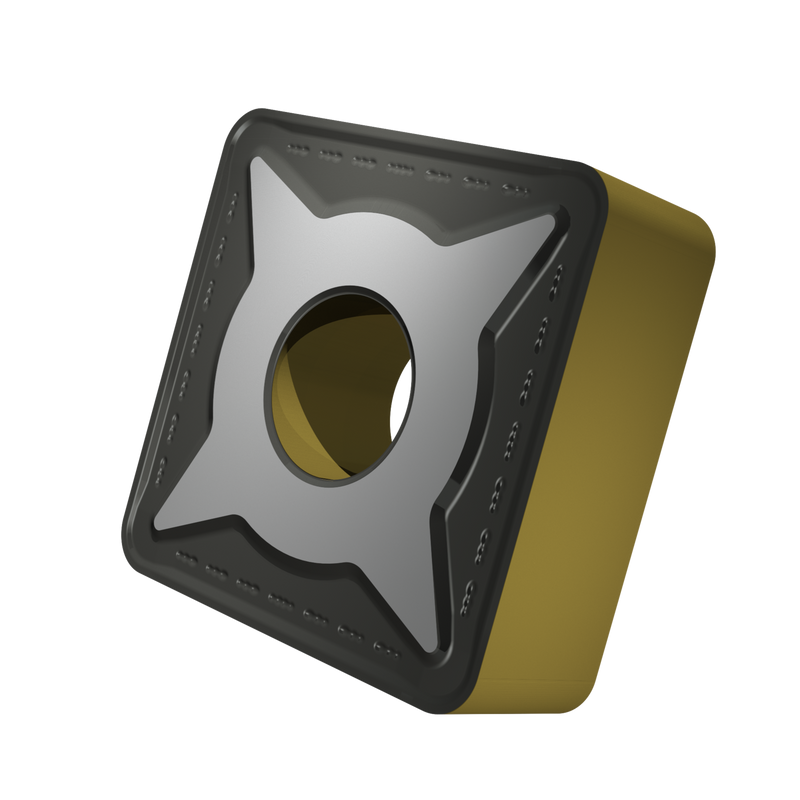

SNMG 866-RM:T9415
SNMG 866-RM:T9415

SNMG 866-RM:T9415

UGC DOR8183399
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.14 CAD - $63.14 CAD
$63.14 CAD
$63.14 CAD - $63.14 CAD
$63.14 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec diamètre du cercle inscrit de 1", épaisseur de 3/8", rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 866-RM:T9415
Product Name (ISO)SNMG 250924E-RM:T9415
GradeT9415
Chipbreaker (CBMD)RM
Product Number8183399
Product FamilyGNES
Insert Geometry
Insert DesignGSNM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number8183399
EAN3603603953284
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
SNMG 866-RM:T9415 — Line Drawing PDF Download
