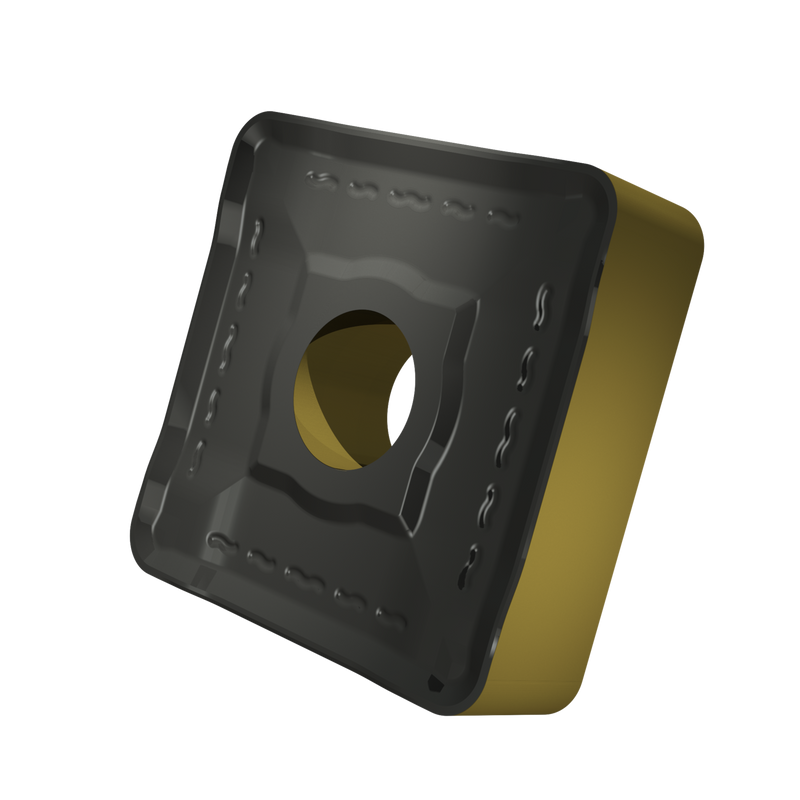

SNMM 856-NR2:T9415
SNMM 856-NR2:T9415

SNMM 856-NR2:T9415

UGC DOR8183401
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.79 CAD - $56.79 CAD
$56.79 CAD
$56.79 CAD - $56.79 CAD
$56.79 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, avec un diamètre de cercle inscrit de 1", 5/16" d'épaisseur, un rayon de bec de 3/32" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NR2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 856-NR2:T9415
Product Name (ISO)SNMM 250724E-NR2:T9415
GradeT9415
Chipbreaker (CBMD)NR2
Product Number8183401
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number8183401
EAN3603603953307
File Type Download
SNMM 856-NR2:T9415 — Line Drawing PDF Download
