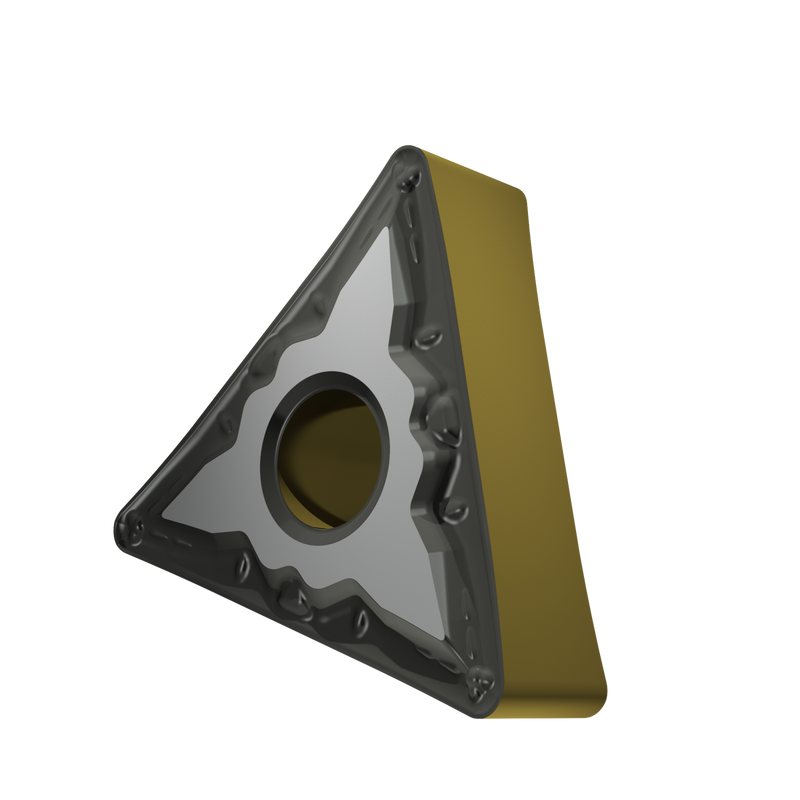

TNMG 332-FM:T9415
TNMG 332-FM:T9415

TNMG 332-FM:T9415

UGC DOR8183405
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.26 CAD - $12.26 CAD
$12.26 CAD
$12.26 CAD - $12.26 CAD
$12.26 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, de la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-FM:T9415
Product Name (ISO)TNMG 160408E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8183405
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8183405
EAN3603603953345
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
TNMG 332-FM:T9415 — Line Drawing PDF Download
