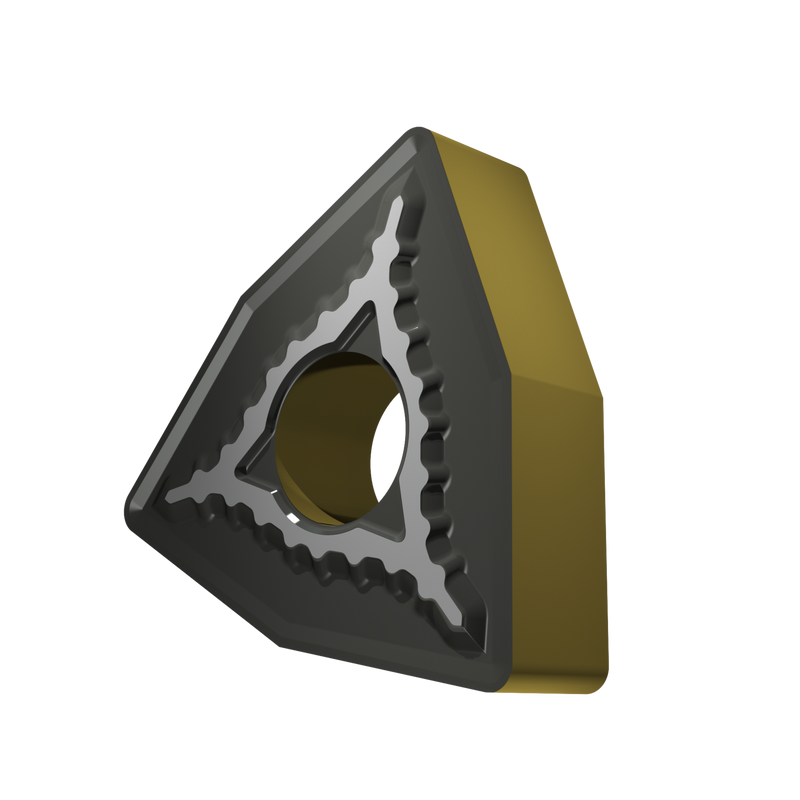

WNMG 432-SM:T9415
WNMG 432-SM:T9415

WNMG 432-SM:T9415

UGC DOR8183411
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.54 CAD - $14.54 CAD
$14.54 CAD
$14.54 CAD - $14.54 CAD
$14.54 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec un diamètre de cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 432-SM:T9415
Product Name (ISO)WNMG 080408E-SM:T9415
GradeT9415
Chipbreaker (CBMD)SM
Product Number8183411
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8183411
EAN3603603953406
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
WNMG 432-SM:T9415 — Line Drawing PDF Download
