CNMX 6-10SN-TF:T9415
CNMX 6-10SN-TF:T9415

CNMX 6-10SN-TF:T9415

UGC DOR8183844
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.79 CAD - $45.79 CAD
$45.79 CAD
$45.79 CAD - $45.79 CAD
$45.79 CAD

Vendu en lots de : 10

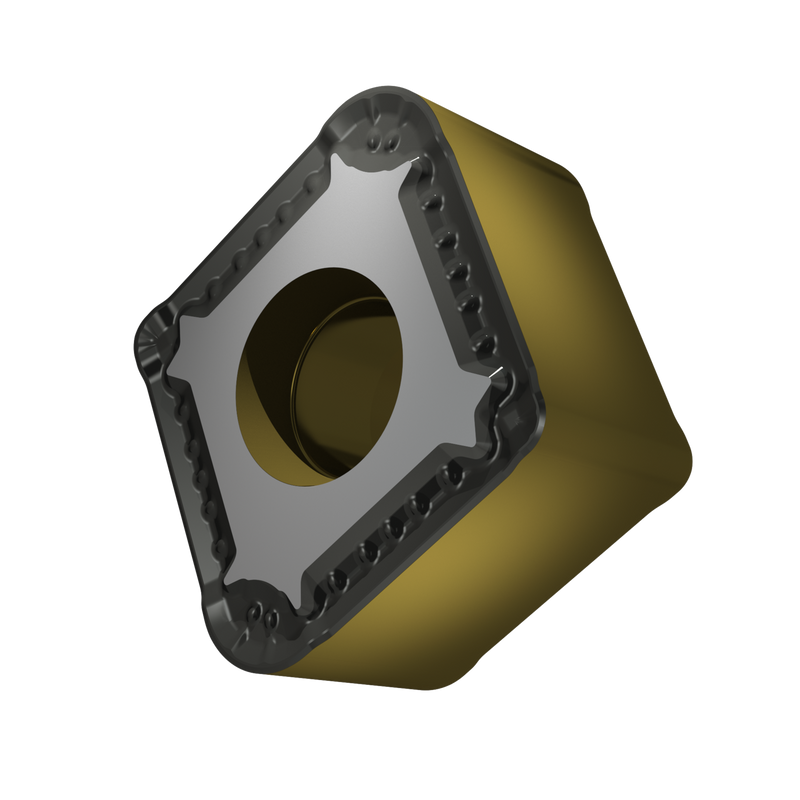

Plaquette négative spéciale, rhomboïde à 80° avec un diamètre de cercle inscrit de 19,05 mm (3/4"), rayon de bec de 3,97 mm (5/32"), précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux TF avec arêtes de coupe arrondies avec facette, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMX 6-10SN-TF:T9415
Product Name (ISO)CNMX 191140SN-TF:T9415
GradeT9415
Chipbreaker (CBMD)TF
Product Number8183844
Product FamilyCNMX 19

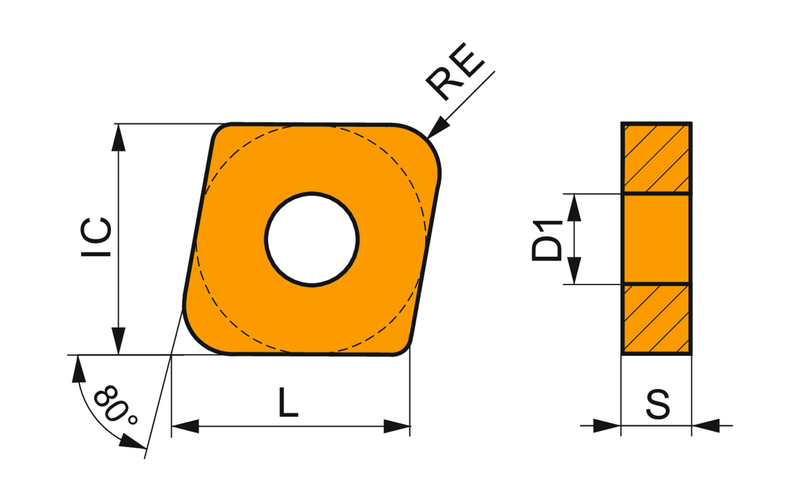

Insert Geometry
Insert DesignCNMX 19
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.433"
Insert Thickness — mm (S)11.0 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Tool Information
Reference Numbers
EDP Number8183844
EAN3603603953581
File Type Download
CNMX 6-10SN-TF:T9415 — Line Drawing PDF Download
